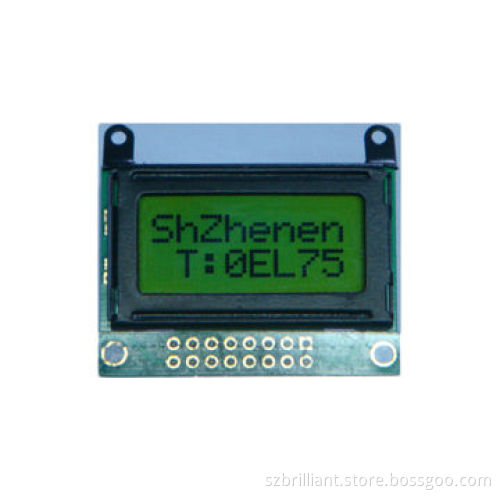

8 characters x2 lines LCD display module support serial parallel interface with led backlight
- Payment Type:
- T/T in Advance
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T in Advance |
|---|
- Model No.: CM802-1SLYA
- Number of character: 8X2
- Size: 40*35.5*7.5mm
- V. A: 30*14mm
- Drive method: 1/16 duty, 1/5 bias
- View angle: 12: 00
- Display: STN yellow-green or blue model
- Voltage: 5V or 3.3V
- Controller: SPLC780
- Top: -20~+70 º C
- TST: -30~+80 º C
- Backlight: LED or EL
-
