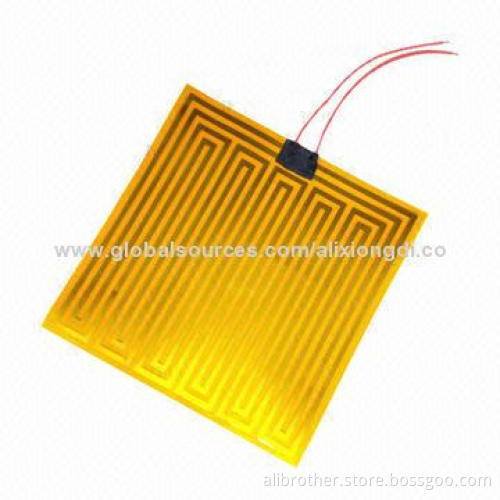

Kapton Heater, Available in Variety of Shapes, Sizes, and Wattages
- Payment Type:
- L/C, T/T, PayPal or Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | L/C, T/T, PayPal or Western Union |
|---|
Product Description
Product Description
- Interior FEP binding stands 200°C
- Apply in vacuum environment
- Stand against most of chemical material such as acid, impregnant, alkali (except NaOH)
- Size can be very small
- Thin and small curly semi-diameter
- Temperature range: -50-200 degreees C, maximum temperature is 150 deg. C for the heater with paster
- Materials: Kapton/FEP, polyimide membrane
- Resistance precision: ±10%ak±0.5Ω (taking maximum)
- Medium strength: 1,000VRMS
- Minimum curve semi-diameter: 0.8mm
- Insulation: UDC500V >=200MΩ
- Dielectric strength: UAC>=2,000V
- Operating temperature: <=232°C
- Power density: <=1.1W/cm² or <=6.5W/cm² (with thermostat)
- Thickness: <=0.2mm can bent at any angle
- Weight: <=278g/m²
- Design instruction:
- Drawing for maximum installation size of the heater
- Relevant electric parameters: as power, voltage, resistance, current and tolerance
- Direction, length and location of the lead wire
- Medical diagnostic instruments: heat sample trays, reagent bottles
- Stabilize optoelectronic components
- Test or simulate integrated circuits
- Enable cold weather operation of outdoor electronics such as laptop, ATM, LCD’s
- Protects aircraft electronic and mechanical devices in cold weather/area
- Heating for very small sizes
- Very thin
- High dielectric strength
- Flexible circuit design
- Superior tensile strength and tear resistance
- Resistant to radiation and most solvents
- Better choice far high watt density heaters (those over 5W/in2), also used for watt densities of 5 or less
- Excellent choice for heaters that require multi-zone wattages or heaters that have many holes and/or cutouts
- May provide an economic advantage for high volume applications
