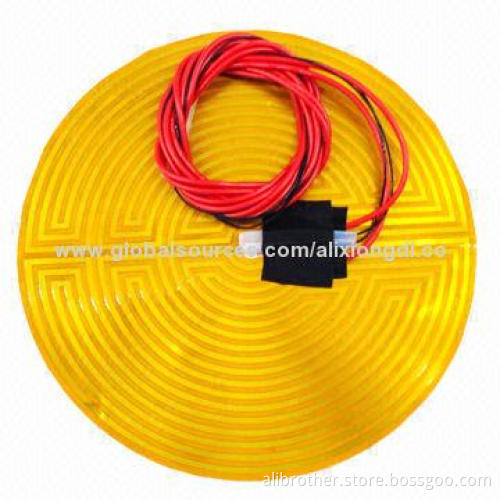

Flexible Round Kapton Heater, 12V Dia, 160mm, 120W

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	PayPal, Western Union, T/T

Product Description

Excellent tensile strength and tear resistance

Low out-gassing

Wattage: 2.5, 5 or 10W/in

Small, flexible radius

Chemically resistant to many solvents and oils

Comes with pressure sensitive adhesive backing

12V or 24V DC

Multiple wattage heaters and profiled watts

Basic information:

Interior FEP binding stands 200°C
Applied in vacuum environment
Stand against most of chemical material such as acid, impregnated, alkali (except NaOH)
Size: can be very small
Thin and small curly semi-diameter
Temperature range: -50-200°C, maximum temperature is 150°C for the heater with paster
Materials: Kapton/FEP, polyimide membrane
Resistance precision: ±10%ak±0.5Ω (taking maximum)
Medium strength: 1,000Vrms
Minimum curve semi-diameter: 0.8mm

Technical data:

Design instruction:

Drawing for maximum installation size of the heater
Relevant electric parameters: as power, voltage, resistance, current and tolerance
Direction, length and location of the lead

Interior FEP binding stands 200°C

Applied in vacuum environment

Stand against most of chemical material such as acid, impregnated, alkali (except NaOH)

Size: can be very small

Thin and small curly semi-diameter

Temperature range: -50-200°C, maximum temperature is 150°C for the heater with paster

Materials: Kapton/FEP, polyimide membrane

Resistance precision: ±10%ak±0.5Ω (taking maximum)

Medium strength: 1,000Vrms

Minimum curve semi-diameter: 0.8mm

Insulation: UDC500V ≥200MΩ

Dielectric strength: UAC≥2,000V
