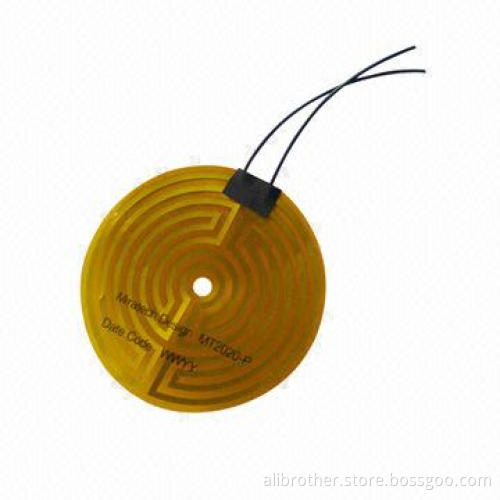

Flexible Polyimide Kapton Heater, Customized Size, Voltage/Watt

Get Latest Price

Payment Type:: L/C, T/T, PayPal or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T, PayPal or Western Union

Product Description

All kapton heaters are customized, if you don't see your size in our website, please contact me

Due to its low thermal mass and superb electrical insulation, Kapton is ideal for applications that require a lightweight solution with fast and efficient thermal transfer

Features:

Interior FEP binding stands 200 deg.C
Applies in vacuum environment
Stands against most of chemical material such as acids, impregnant, alkali (except NaOH)
The size can be very small
Thin and small curly semi-diameter
Temperature range: -50 to 200 deg.C, the maximum temperature is 200 deg. C for the heater with paster
Materials: Kapton/FEP, polyimide membrane
Resistance precision: ±10%ak±0.5Ω (taking max)
Medium strength: 1,000 VRMS
Minimum curve semi-diameter: (0.8mm)
Superior tensile strength and tear resistance
Resistant to radiation and most solvents
Transparency allows inspection of internal details
Ideal for extreme temperature environments
Multiple layers possible

Why Kapton:

Better choice for high watt density heaters (those over 5 watts/in2), also used for watt densities of 5 or less
Excellent choice for heaters that require multi-zoned wattages or heaters that have many holes and/or cut-outs
May provide an economic advantage for high volume applications
High tensile strength
Low out-gassing
Excellent dimensional stability
Thin, lightweight profile
High watt densities
Transparent material
Transparent amber colored polyimide film
Top and bottom layer of Kapton® each with a thickness of .002″
Layers of adhesive (.001″) .001″ element
Overall thickness of .007″
