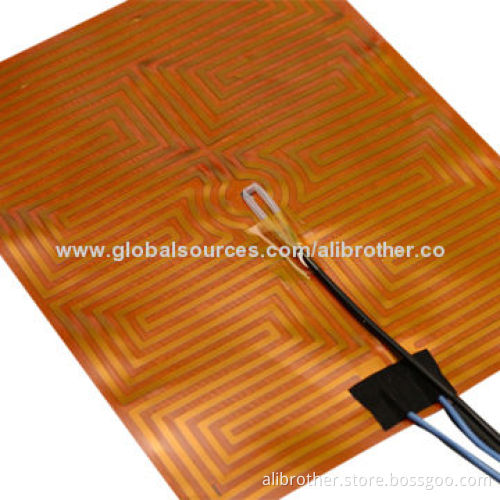

Flexible 3D Printer Kapton Heater

Get Latest Price

Payment Type:: PayPal, Western Union, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	PayPal, Western Union, T/T

Product Description

Features:

Good tensile strength and tear resistance
Low out-gassing
Wattage: 2.5, 5 or 10W/in
Small, flexible radius
Chemically resistant to many solvents and oils
Comes with pressure sensitive adhesive backing
12V or 24V DC
Multiple wattage heaters and profiled watts

Basic information:

Interior FEP binding stands 200°C
Applied in vacuum environment
Stand against most of chemical material such as acid, impregnated, alkali (except NaOH)
Size: can be very small
Thin and small curly semi-diameter
Temperature range: -50-200°C, maximum temperature is 150°C for the heater with paster
Materials: Kapton/FEP, polyimide membrane
Resistance precision: ±10%ak±0.5Ω (taking maximum)
Medium strength: 1,000V RMS
Minimum curve semi-diameter: 0.8mm

Technical data:

Insulation: UDC500V ≥200MΩ
Dielectric strength: UAC≥2,000V
Operating temperature: ≤232°C
Power density: ≤1.1W/cm² or ≤6.5W/cm² (with thermostat)
Thickness: ≤0.2mm can bent at any angle
Weight: ≤278g/m²

Design instruction:

Drawing for maximum installation size of the heater
Relevant electric parameters: as power, voltage, resistance, current and tolerance
Direction, length and location of the lead wire

Why Kapton:

Heating for very small sizes
Very thin
High dielectric strength
Flexible circuit design
Superior tensile strength and tear resistance
Resistant to radiation and most solvents
Better choice far high watt density heaters (those over 5 watts/in)
Also used for watt densities of 5 or less
Excellent choice for heaters that require multi-zoned wattages or heaters that have many holes and/or cutouts
May provide an economic advantage for high volume applications

Good tensile strength and tear resistance

Low out-gassing

Wattage: 2.5, 5 or 10W/in

Small, flexible radius

Chemically resistant to many solvents and oils

Comes with pressure sensitive adhesive backing

12V or 24V DC

Multiple wattage heaters and profiled watts

Interior FEP binding stands 200°C

Applied in vacuum environment

Stand against most of chemical material such as acid, impregnated, alkali (except NaOH)

Size: can be very small

Thin and small curly semi-diameter

Temperature range: -50-200°C, maximum temperature is 150°C for the heater with paster

Materials: Kapton/FEP, polyimide membrane

Resistance precision: ±10%ak±0.5Ω (taking maximum)

Medium strength: 1,000V RMS

Minimum curve semi-diameter: 0.8mm

Insulation: UDC500V ≥200MΩ

Dielectric strength: UAC≥2,000V

Operating temperature: ≤232°C

Power density: ≤1.1W/cm² or ≤6.5W/cm² (with thermostat)

Thickness: ≤0.2mm can bent at any angle

Weight: ≤278g/m²

Drawing for maximum installation size of the heater

Relevant electric parameters: as power, voltage, resistance, current and tolerance

Direction, length and location of the lead wire

Heating for very small sizes

Very thin

High dielectric strength

Flexible circuit design

Superior tensile strength and tear resistance

Resistant to radiation and most solvents

Better choice far high watt density heaters (those over 5 watts/in)

Also used for watt densities of 5 or less

Excellent choice for heaters that require multi-zoned wattages or heaters that have many holes and/or cutouts

May provide an economic advantage for high volume applications
