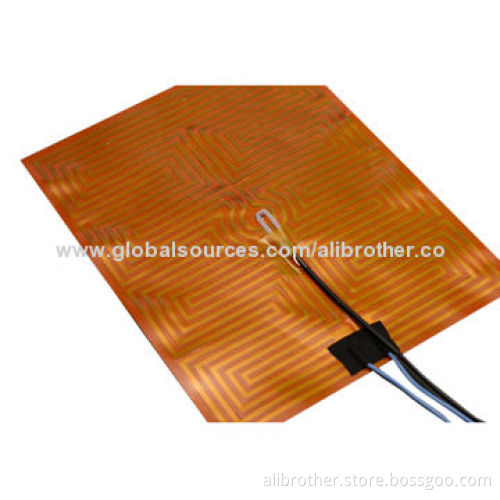

3D Printer Kapton Flexible Heater, High Dielectric Strength

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	PayPal, Western Union, T/T

Product Description

Features:

Basic information:

Interior FEP binding stands 200°C
Applied in vacuum environment
Stand against most of chemical material such as acid, impregnated and alkali (except NaOH)
Size: can be very small
Thin and small curly semi-diameter
Temperature range: -50-200°C, maximum temperature is 150°C for heater with paster
Materials: Kapton/FEP, polyimide membrane
Resistance precision: ±10%ak ±0.5Ω (taking maximum)
Medium strength: 1000V RMS
Minimum curve semi-diameter: 0.8mm

Technical data:

Design instruction:

Drawing for maximum installation size of heater
Relevant electric parameters: as power, voltage, resistance, current and tolerance
Direction, length and location of lead wire

Why Kapton:

Heating for very small sizes
Very thin
High dielectric strength
Flexible-circuit design
Superior tensile strength and tear-resistant
Resistant to radiation and most solvents
Better choice far high watt density heaters (those over 5 watts/in)
Also used for watt densities of 5 or less
Nice choice for heaters that require multi-zoned wattages or heaters that have various holes and/or cut-out
May provided economic advantage for high volume applications

Nice tensile strength and tear-resistant

Low out gassing

Wattage: 2.5, 5 or 10W/in

Small and flexible radius

Chemically-resistant to various solvents and oils

Comes with pressure sensitive adhesive backing

Voltage: 12 or 24V DC

Multiple wattage heaters and profiled watts

Interior FEP binding stands 200°C

Applied in vacuum environment

Stand against most of chemical material such as acid, impregnated and alkali (except NaOH)

Size: can be very small
