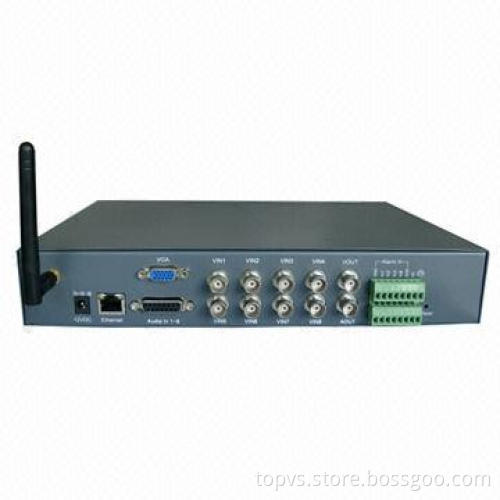

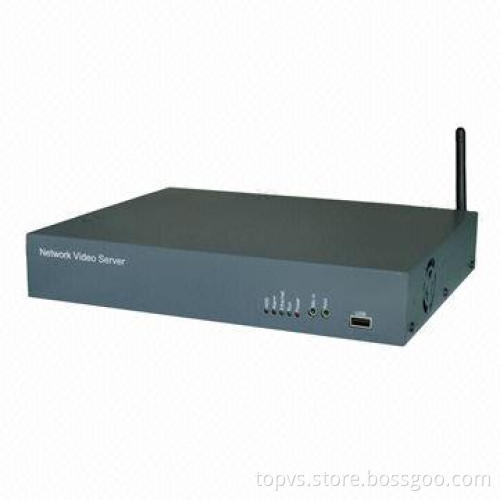

8-channel H.264 3G WCDMA Network Video Server, Convert Analog Camera to 3G IP Camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Features:

Hisilicon 3512 Chipset, embedded Linux operating systems
H.264 compression, full D1 in real-time
Built-in 3G (WCDMA) module inside for wireless transmission
With SATA HDD interface (maximum 2TB)
Strong software supported
Smartphone view/video lost/video mask/motion detection/RS485/e-mail/FTP/dual stream/two way audio

Details:

Built-in 3G (WCDMA) module inside, supports 3G wireless transmission
Use optimized H.264 video compression algorithm to realize transmission of high definition video over low network bandwidth easily
Images D1/H-D1/CIF/QCIF are adjustable, allowing NTSC/PAL to switch
Maximum frame rate:
- NTSC: 30fps
- PAL: 25fps
Bit stream: 128Kbps to 1Mbps
Built-in web server to realize remote surveillance, control and setting via standard IE
Reserves USB interface, easy for users to realize expansion of local storage function
Supports remote system upgrades, built-in hardware watchdog to ensure stability of te system
Supports dynamic domain name and also supports LAN and the Internet (ADSL, cable modem)
Supports multiple network protocols: TCP/IP, UDP, multicast, HTTP, Telnet and more
Bi-directional real-time transmission of audio talk-back
Network self-adapting technology to adjust video frame rate automatically according to network bandwidth
RS485 serial port with several built-in high-speed domes and decoder protocols supports transparent protocols
Supports image masking/image snapshot
Allow at most ten users to browse at same time
Built-in real-time clock to ensure correctness of time after electricity system restart
Perfect functions of users, log and alarm management
Perfect supports of SDK, allows users to call for second round of development through SDK

Hisilicon 3512 Chipset, embedded Linux operating systems

H.264 compression, full D1 in real-time

Built-in 3G (WCDMA) module inside for wireless transmission

With SATA HDD interface (maximum 2TB)

Strong software supported

Smartphone view/video lost/video mask/motion detection/RS485/e-mail/FTP/dual stream/two way audio

Built-in 3G (WCDMA) module inside, supports 3G wireless transmission

Use optimized H.264 video compression algorithm to realize transmission of high definition video over low network bandwidth easily

Images D1/H-D1/CIF/QCIF are adjustable, allowing NTSC/PAL to switch

Maximum frame rate:

Bit stream: 128Kbps to 1Mbps

Built-in web server to realize remote surveillance, control and setting via standard IE

Reserves USB interface, easy for users to realize expansion of local storage function

Supports remote system upgrades, built-in hardware watchdog to ensure stability of te system

Supports dynamic domain name and also supports LAN and the Internet (ADSL, cable modem)

Supports multiple network protocols: TCP/IP, UDP, multicast, HTTP, Telnet and more

Bi-directional real-time transmission of audio talk-back

Network self-adapting technology to adjust video frame rate automatically according to network bandwidth

RS485 serial port with several built-in high-speed domes and decoder protocols supports transparent protocols

Supports image masking/image snapshot

Allow at most ten users to browse at same time

Built-in real-time clock to ensure correctness of time after electricity system restart

Perfect functions of users, log and alarm management

Perfect supports of SDK, allows users to call for second round of development through SDK

NTSC: 30fps

PAL: 25fps
