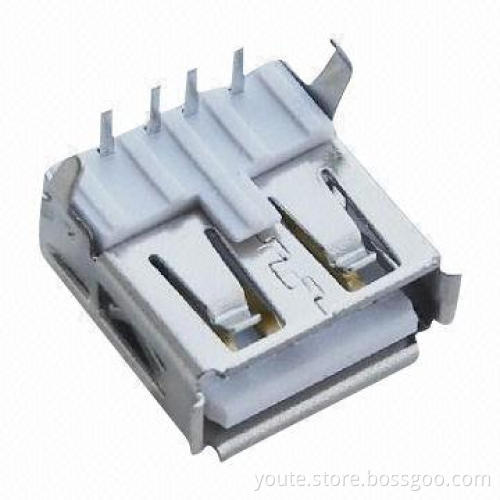

USB Connector, A/F 90 Degrees DIP 2.0, 1,500 Cycles Life Test

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T or Western Union

Product Description

Materials:

Sheet: C2680H, T = 0.30, Ni plated
Terminal: C5191H, T = 0.25, gold plating on contact area, tin plating on solder area
Housing: PBT + GF 30% black/White

Mechanical and electrical:

Sheet: C2680H, T = 0.30, Ni plated

Terminal: C5191H, T = 0.25, gold plating on contact area, tin plating on solder area

Housing: PBT + GF 30% black/White

Contact resistance: 30m Ohms (maximum)

Insulation resistance: 1,000M Ohms minute, at 500V DC

Rated voltage and current: 1.5A at 250V AC minute

Dielectric withstanding voltage: 500V AC (rms) for 1 minute

Durability (life test): 1,500 cycles

Insertion force: 35 Newtone (maximum)

Extraction force: 10 Newtone (maximum)
