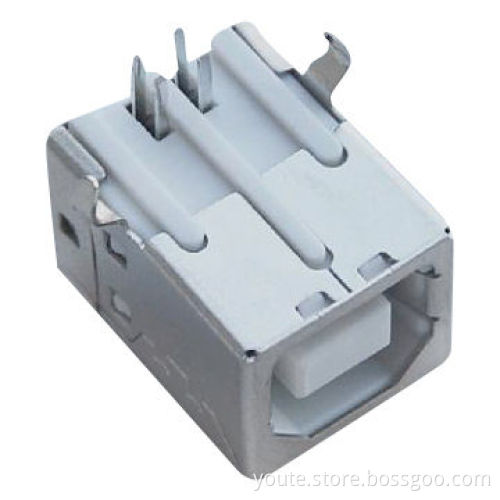

USB Connector, B/F 90°, DIP 2.0, 1.5A at 250V AC Rated Voltage and Current

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T or Western Union

Product Description

Features:

Materials:
- Shell: C2680H, T: 0.30, nickel-plated
- Terminal: C5191H, T: 0.25, gold plating on contact area, tinplating on solder area
- Housing: PBT + GF30% black/white
Mechanical and electrical:
- Contact resistance: 30m Ohms (maximum)
- Insulation resistance: 1,000m Ohms (minimum), at 500V DC
- Rated voltage and current: 1.5A at 250V AC (minimum)
- Dielectric withstanding voltage: 500V AC (RMS) for 1minute
- Durability (life test): 1,500 cycles
- Insertion force: 35 new tones maximum
- Extraction force: 10 new tones maximum

Materials:

Shell: C2680H, T: 0.30, nickel-plated
Terminal: C5191H, T: 0.25, gold plating on contact area, tinplating on solder area
Housing: PBT + GF30% black/white

Mechanical and electrical:
