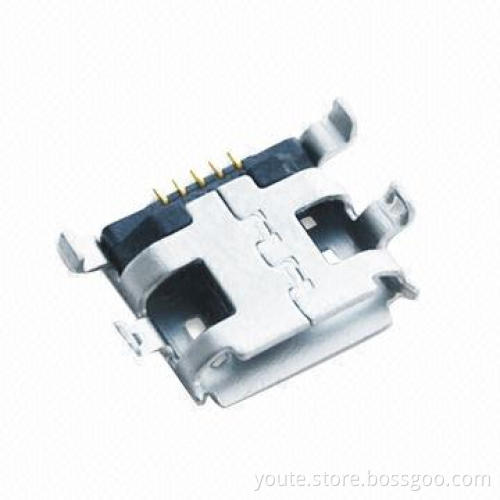

2.0 SMT Micro USB Connector, 5P-F Shell, 500V AC Dielectric Withstanding Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T or Western Union

Product Description

Features:

Materials:
- Shell: C2680H, T = 0.30mm, NI plated
- Terminal: C5191H, T = 0.25mm, gold plating on contact area, tin plating on solder area
- Housing: PBT + GF 30% black/white
Mechanical and electrical:
- Contact resistance: 30M Ohms (maximum)
- Insulation resistance: 1,000M Ohms at 500V DC (minimum)
- Rated voltage and current: 1.5A at 250V AC (minimum)
- Dielectric withstanding voltage: 500V AC (rms) for 1 minute
- Durability (lifespan): 1,500 cycles
- Insertion force: 35-newton (maximum)
- Extraction force: 10-newton (maximum)

Materials:

Shell: C2680H, T = 0.30mm, NI plated
Terminal: C5191H, T = 0.25mm, gold plating on contact area, tin plating on solder area
Housing: PBT + GF 30% black/white

Mechanical and electrical:
