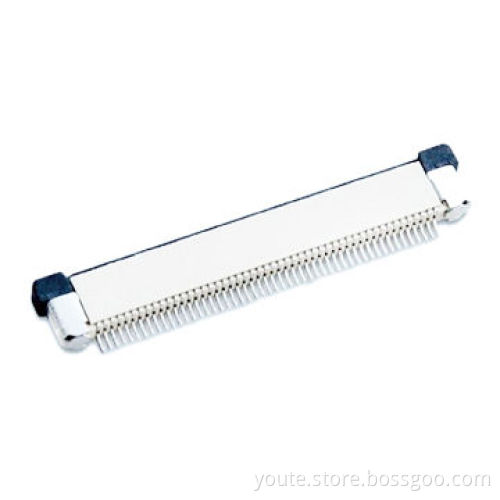

FPC Connector with 0.5mm, 2.0mm Height, Top/Bottom Contact, 50V AC/DC Rated Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T or Western Union

Product Description

Material specifications:

Contact and connecting options:

Electrical performance:

Rated voltage: 50V AC/DC
Rated current: 0.4A AC/DC (maximum)
Withstand voltage: 200V AC/minute
Insulation resistance: 500M© (minimum)
Contact resistance: 20M© (maximum)
Dielectric strength: 250V AC for 1 minute between adjacent terminal, no breakdown
Insulation resistance: 50M Ohms, 250V DC for 1 minute between adjacent terminal
Contact resistance: 40 million Ohms (maximum)
Operating temperatures: -25 - 85°C

Poles: 6-30

Housing: high-temperature thermoplastic, (LCP/ PA46/ PPS),UL9V-0 rated

Contact: phosphor bronze, tin-lead plated

Fitting nail: brass

Top contact

Bottom contact

Flip type bottom contact

Tail construction type: SMD type

Standard package: cube, then put into strong carton

Rated voltage: 50V AC/DC

Rated current: 0.4A AC/DC (maximum)

Withstand voltage: 200V AC/minute
