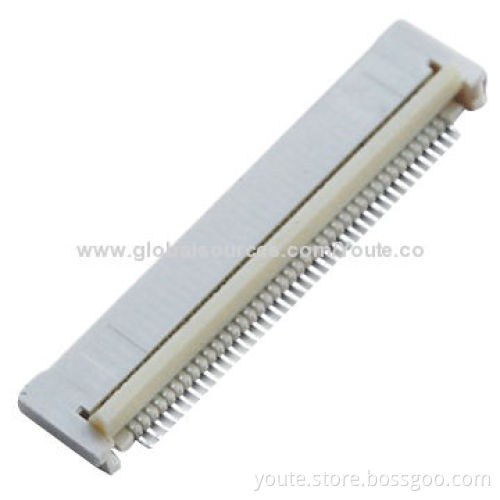

FPC Connector, 0.5mm, H = 2.0mm, Back Flip Type

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T or Western Union

Product Description

Material specifications:

Poles: 6-30
Housing: high-temperature thermoplastic, (LCP/ PA46/PPS), UL9V-0 rated
Contact: phosphor bronze, tin-lead plated
Fitting nail: brass
Contact and connecting options:
- Top contact
- Bottom contact
- Flip type bottom contact
Tail construction type: SMD type
Standard package: cube, then put into strong carton

Electrical performance:

Rated voltage: 50V AC/DC
Rated current: 0.4A AC/DC (maximum)
Withstand voltage: 200V AC/minute
Insulation resistance: 500MΩ (minimum)
Contact resistance: 20MΩ (maximum)
Dielectric strength: 250V AC for 1 minute between adjacent terminal, no breakdown
Insulation resistance: 50MΩ (minimum), 250V DC for 1 minute between adjacent terminal
Contact resistance: 40MΩ (maximum)
Operating temperature: -25-85°C
