Product Description

Main description of the product:

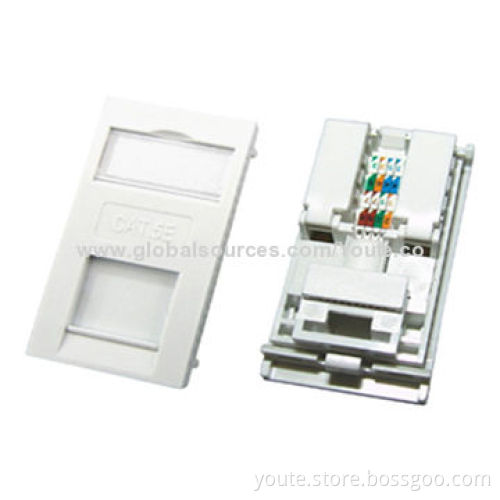

UTP Cat.5e keystone jack, British type, fit for connecting application of communication ports in working area
Fitting for 1 port, 2 ports, 4 ports British type faceplate, with the punching sequence direction marks on the sides of keystone jack, which can provides a correct and quick guide for punching and connecting operation
According to the standard of the ISO/IEC 11801:2002 Class D and ANSI/TIA/EIA568-B
CAT.5e, T568A punching sequence and T568B punching sequence are both compatible
Connection type: FCC connector for RJ45 patch cord and IDC for 4-pair Cat.5e cables
Fitting for the Cat.5e general cable distribution system

Technique characteristics:

Material of plastic parts: PC UL94V-0
Material of the FCC connectors 8-pin of the RJ45 jack: phosphor bronze with golden plated 3U, 6U, 15U, 30U, 50U at option
Inserting duration: 750 times
Material of the IDC clips: tinned phosphor bronze pins
Fitting for 22AWG/23AWG/24AWG cables
Punching duration: 250 times
Standard krone punching tool
Testing condition of transmitting capability: 100MHz

UTP Cat.5e keystone jack, British type, fit for connecting application of communication ports in working area

Fitting for 1 port, 2 ports, 4 ports British type faceplate, with the punching sequence direction marks on the sides of keystone jack, which can provides a correct and quick guide for punching and connecting operation

According to the standard of the ISO/IEC 11801:2002 Class D and ANSI/TIA/EIA568-B

CAT.5e, T568A punching sequence and T568B punching sequence are both compatible

Connection type: FCC connector for RJ45 patch cord and IDC for 4-pair Cat.5e cables

Fitting for the Cat.5e general cable distribution system

Material of plastic parts: PC UL94V-0

Material of the FCC connectors 8-pin of the RJ45 jack: phosphor bronze with golden plated 3U, 6U, 15U, 30U, 50U at option

Inserting duration: 750 times

Material of the IDC clips: tinned phosphor bronze pins

Fitting for 22AWG/23AWG/24AWG cables

Punching duration: 250 times

Standard krone punching tool

Testing condition of transmitting capability: 100MHz
