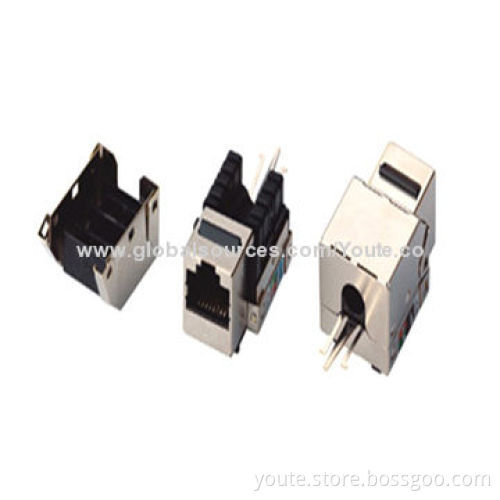

Shield 90° Cat 5e Keystone Jack

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Electrical:

Environmental:

Mechanical:

Voltage rating: 125VAC RMS

Current rating: 1.5 AMP

Contact resistance: 100 Milliohms MAX

Insulation resistance: 1000 Megohms MIN at 500VDC

Dielectric strength: 750VAC RMS 60Hz, 1MIN

Storage: -40 to +85°C

Operation: 0 to 70°C

Conform to TIA/EIA 568B Category 5e

Mates with modular plug conforming to FCC part 68, Subpart F

Shield material: brass T=0.30mm nickel plating

Housing material: PC UL94V-0

Insert material: flame retardancy ABS UL94V-0

PCB material: FR-4

Thickness: 1.6mm

Contact material: phosphor bronze stamp PIN T=0.35mm

IDC contact material: phosphor bronze T=0.50mm with nickel plating

Wire: AWG 24-26
