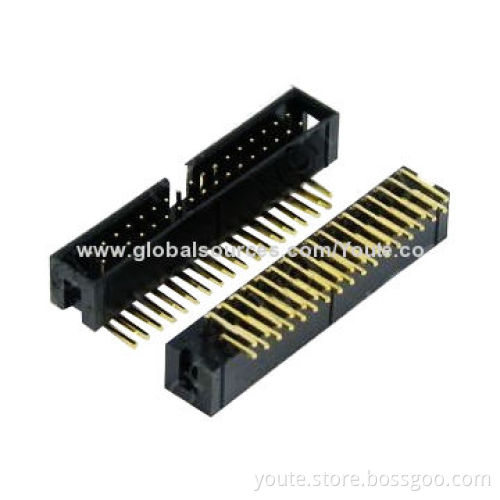

2.54 Box Header Connector, 500V AC/Minute Withstand Voltage
- Payment Type:
- L/C, T/T or Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | L/C, T/T or Western Union |
|---|
Product Description
Product Description
- Contact pitch: 1.27 x 2.54mm
- Positions type: 180 degrees infix type
- Positions option: 6-64 POS
- Materials:
- Contact: brass
- Insulator: PBT + 30% GF, UL94V-0 rated
- Contact plating Au or Sn over 50µ Ni
- Packaging tape and reel/cube/tray
- Electronic performance:
- Current rating: 0.75A
- Contact resistance: 30m© (maximum)
- Insulation resistance: 1,000m© (minimum)
- Withstand voltage: 500V AC/minute
- Operating temperature: -40 to 105°C
- Contact: brass
- Insulator: PBT + 30% GF, UL94V-0 rated
- Contact plating Au or Sn over 50µ Ni
- Packaging tape and reel/cube/tray
- Current rating: 0.75A
- Contact resistance: 30m© (maximum)
- Insulation resistance: 1,000m© (minimum)
- Withstand voltage: 500V AC/minute
- Operating temperature: -40 to 105°C
