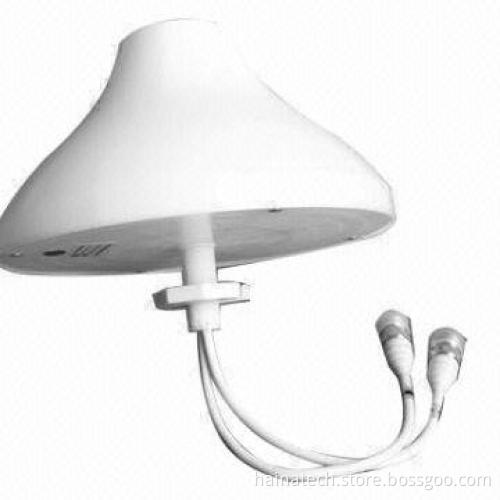

Omnidirectional Ceiling Antenna, High-inter-modulation, -40 to 55°C Operating Temperatures
- Payment Type:
- T/T, L/C, Western Union, PayPal
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | T/T, L/C, Western Union, PayPal |
|---|
Product Description
Product Description
- Electrical:
- Frequency range: 806-960/1,710-2,700/1,880-2,700MHz
- Polarization: vertical and horizontal
- Gain: ≥1.5/3, ≥3.5dBi
- Half power angle:
- Horizontal: 360°
- Vertical: 85/55°
- Isolation: ≥25dB
- Intermodulation: ≤-107dBm at 2 x 2W
- VSWR: ≤1.5
- Power handling: 50W
- Impedance: 50Ω
- Lightning protection DC ground
- Environment:
- Operating temperatures: -40 to 55°C
- Relative humidity range: 5-95% RH
- Mechanical:
- Connectors: 2 pieces N-female
- Dimensions: φ203 x 113mm
- Weight: 0.37kg
- Materials: aluminum and cuprum
- Antenna housing material: ABS
- Antenna housing color: white
- Out-of-roundness: ≤2dB
- Frequency range: 806-960/1,710-2,700/1,880-2,700MHz
- Polarization: vertical and horizontal
- Gain: ≥1.5/3, ≥3.5dBi
- Half power angle:
- Horizontal: 360°
- Vertical: 85/55°
- Isolation: ≥25dB
- Intermodulation: ≤-107dBm at 2 x 2W
- VSWR: ≤1.5
- Power handling: 50W
- Impedance: 50Ω
- Lightning protection DC ground
- Operating temperatures: -40 to 55°C
- Relative humidity range: 5-95% RH
- Connectors: 2 pieces N-female
- Dimensions: φ203 x 113mm
- Weight: 0.37kg
- Materials: aluminum and cuprum
- Antenna housing material: ABS
- Antenna housing color: white
- Out-of-roundness: ≤2dB
- Horizontal: 360°
- Vertical: 85/55°
