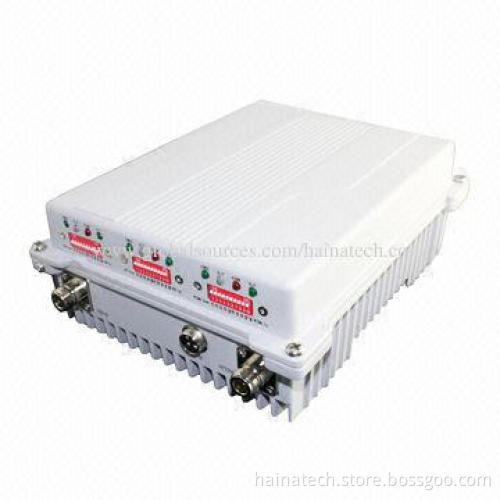

3G WCDMA 2,100MHz System Cellphone Signal Micro Power Repeater, Intelligent Monitoring, High-gain
  • 3G WCDMA 2,100MHz System Cellphone Signal Micro Power Repeater, Intelligent Monitoring, High-gain
  • 3G WCDMA 2,100MHz System Cellphone Signal Micro Power Repeater, Intelligent Monitoring, High-gain
3G WCDMA 2,100MHz System Cellphone Signal Micro Power Repeater, Intelligent Monitoring, High-gain
3G WCDMA 2,100MHz System Cellphone Signal Micro Power Repeater, Intelligent Monitoring, High-gain

3G WCDMA 2,100MHz System Cellphone Signal Micro Power Repeater, Intelligent Monitoring, High-gain

Get Latest Price
Payment Type:
T/T, L/C, Western Union, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, PayPal
Product Description
Product Description
  • Specifications:
    • High-gain, low-noise
    • Automatic level/gain control (ALC/AGC), high-stability and reliability
    • Intelligent monitoring, automatic alarm and supports remote control
    • Quick to install, easy to operate and maintain
    • Suitable for a variety of environment, waterproof and dust-proof, low-cost
    • Output power: 20 ±2dBm
    • Gain: 75 ±3dB
    • MGC (step attenuation): ≥31/1dB step
    • ALC control: ≥25dB, auto shut-off after 25dB
    • Gain flatness:
      • Ripple in band: ≤5.0dB
      • Noise figure: ≤5.0dB
    • VSWR: ≤1.8
    • Spurious emission mask (WCDMA only) meet 3GPP TS 25.143
    • Software:
      • Local monitoring: PC via RS232
      • Remote monitoring via SMS or GPRS modem
      • Controlled parameters: gain, frequency, repeater-on/off, alarm enable and more
      • Monitoring parameters: gain, frequency, repeater-on/off, alarm message, output power
      • Alarm items: repeater failure, DC failure, ALC alarm and PLL failure
    • Mechanical:
      • Operating temperature range: 25 to 50ºC
      • Relative humidity: 0-95% RH
      • Dimensions: 255 x 208 x 120mm (without connectors, without brackets)
      • Weight: ≤5kg
      • Power supply: 220V AC ±20%, 50Hz ±10%
      • Connectors type: N-female
      • Mounting: wall or pole
  • Packing: 1 piece in box
  • High-gain, low-noise
  • Automatic level/gain control (ALC/AGC), high-stability and reliability
  • Intelligent monitoring, automatic alarm and supports remote control
  • Quick to install, easy to operate and maintain
  • Suitable for a variety of environment, waterproof and dust-proof, low-cost
  • Output power: 20 ±2dBm
  • Gain: 75 ±3dB
  • MGC (step attenuation): ≥31/1dB step
  • ALC control: ≥25dB, auto shut-off after 25dB
  • Gain flatness:
    • Ripple in band: ≤5.0dB
    • Noise figure: ≤5.0dB
  • VSWR: ≤1.8
  • Spurious emission mask (WCDMA only) meet 3GPP TS 25.143
  • Software:
    • Local monitoring: PC via RS232
    • Remote monitoring via SMS or GPRS modem
    • Controlled parameters: gain, frequency, repeater-on/off, alarm enable and more
    • Monitoring parameters: gain, frequency, repeater-on/off, alarm message, output power
    • Alarm items: repeater failure, DC failure, ALC alarm and PLL failure
  • Mechanical:
    • Operating temperature range: 25 to 50ºC
    • Relative humidity: 0-95% RH
    • Dimensions: 255 x 208 x 120mm (without connectors, without brackets)
    • Weight: ≤5kg
    • Power supply: 220V AC ±20%, 50Hz ±10%
    • Connectors type: N-female
    • Mounting: wall or pole
  • Ripple in band: ≤5.0dB
  • Noise figure: ≤5.0dB
  • Local monitoring: PC via RS232
  • Remote monitoring via SMS or GPRS modem
  • Controlled parameters: gain, frequency, repeater-on/off, alarm enable and more
  • Monitoring parameters: gain, frequency, repeater-on/off, alarm message, output power
  • Alarm items: repeater failure, DC failure, ALC alarm and PLL failure
  • Operating temperature range: 25 to 50ºC
  • Relative humidity: 0-95% RH
  • Dimensions: 255 x 208 x 120mm (without connectors, without brackets)
  • Weight: ≤5kg
  • Power supply: 220V AC ±20%, 50Hz ±10%
  • Connectors type: N-female
  • Mounting: wall or pole
