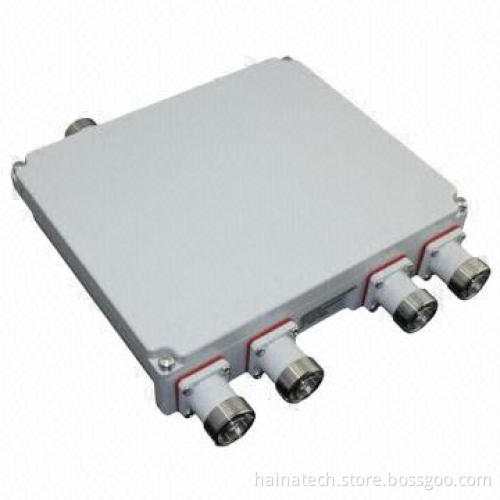

Combiner, 800-960/1710-1880/1920-2170/2500-2690MHz High-intermodulation/238 x 200 x 52mm Size

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, PayPal

Product Description

Frequency range: 800-960/1710-1880/1920-2170/2500-2690MHz

Insertion loss:

Return loss/VSWR: ≤-19dB/1.25

Isolation: >50dB

Impedance: 50Ω

Input power: 300/300/300/200W

Intermodulation: <-155dBc at 43dBm x 2

DC/AISG bypass (maximum 2,500mA)

Lightning protection: NA

Environment:

Mechanical:

Port 1-5: <0.3dB at (800–960MHz)

Port 2-5: <0.3dB at (1710–1880MHz)

Port 3-5: <0.3dB at (1920–2170MHz)

Port 4-3: <0.3dB at (2500–2690MHz)

Operating temperature range: -40 to 60°C

Storage temperature range: -40 to 85°C

Relative humidity range: 5-95% RH

Applications: IP67

Connectors: 5 pieces DIN-F

Weight: 4.0kg

Dimensions: 238 x 200 x 52mm

Packing: 1 piece/box
