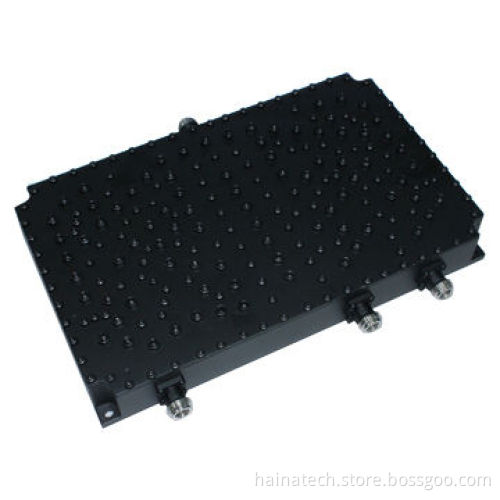

Combiner, GSM and DCS/TD(AF)/TD(E)/WLAN High-intermodulation, 200W Power, 50 Ohms Impedance
  • Combiner, GSM and DCS/TD(AF)/TD(E)/WLAN High-intermodulation, 200W Power, 50 Ohms Impedance
  • Combiner, GSM and DCS/TD(AF)/TD(E)/WLAN High-intermodulation, 200W Power, 50 Ohms Impedance
Combiner, GSM and DCS/TD(AF)/TD(E)/WLAN High-intermodulation, 200W Power, 50 Ohms Impedance
Combiner, GSM and DCS/TD(AF)/TD(E)/WLAN High-intermodulation, 200W Power, 50 Ohms Impedance

Combiner, GSM and DCS/TD(AF)/TD(E)/WLAN High-intermodulation, 200W Power, 50 Ohms Impedance

Get Latest Price
Payment Type:
T/T, L/C, Western Union, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, PayPal
Product Description
Product Description
  • Electrical specifications:
    • Frequency range: GSM and DCS 885-960 and 1,710-1,830 TD (AFE) 1,880-2,025, 2,300-2,370 WLAN 2,400-2,500MHz
    • Insertion loss: ≤0.6dB
    • Ripple in band: ≤0.4dB
    • VSWR: ≤-20dB/1.252
    • Rejection: ≥80dB
    • Intermodulation: ≤-150dBc (3rd order with 2 x 20W)
    • Power: 200W
    • Impedance: 50Ω
    • DC/AISG path: NA
    • Lightning protection: NA
  • Environmental specifications:
    • Operating temperatures: -25 to 65°C
    • Storage temperatures: -45 to 85°C
    • Relative humidity range: 5-95% RH
    • Indoor or outdoor: indoor
  • Mechanical specifications:
    • Connectors: 5 pieces N-female (gold)
    • Dimensions: 275 x 168 x 36mm (without connectors)
    • Weight 2.4kg
  • Packing: 1 piece/box
  • Frequency range: GSM and DCS 885-960 and 1,710-1,830 TD (AFE) 1,880-2,025, 2,300-2,370 WLAN 2,400-2,500MHz
  • Insertion loss: ≤0.6dB
  • Ripple in band: ≤0.4dB
  • VSWR: ≤-20dB/1.252
  • Rejection: ≥80dB
  • Intermodulation: ≤-150dBc (3rd order with 2 x 20W)
  • Power: 200W
  • Impedance: 50Ω
  • DC/AISG path: NA
  • Lightning protection: NA
  • Operating temperatures: -25 to 65°C
  • Storage temperatures: -45 to 85°C
  • Relative humidity range: 5-95% RH
  • Indoor or outdoor: indoor
  • Connectors: 5 pieces N-female (gold)
  • Dimensions: 275 x 168 x 36mm (without connectors)
  • Weight 2.4kg
