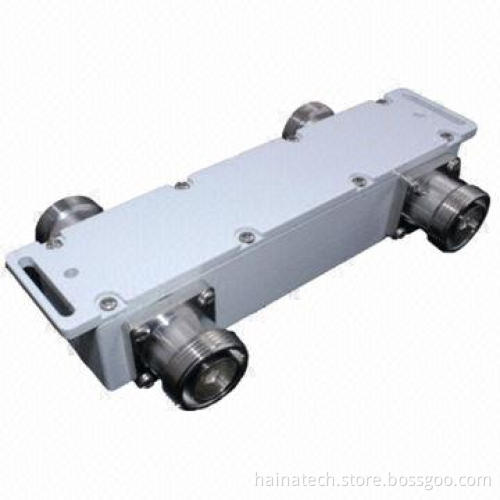

3dB Hybrid 698-2,700MHz High-intermodulation Microwave Component, Dimensions 190.9 x 42 x 39mm
  • 3dB Hybrid 698-2,700MHz High-intermodulation Microwave Component, Dimensions 190.9 x 42 x 39mm
  • 3dB Hybrid 698-2,700MHz High-intermodulation Microwave Component, Dimensions 190.9 x 42 x 39mm
3dB Hybrid 698-2,700MHz High-intermodulation Microwave Component, Dimensions 190.9 x 42 x 39mm
3dB Hybrid 698-2,700MHz High-intermodulation Microwave Component, Dimensions 190.9 x 42 x 39mm

3dB Hybrid 698-2,700MHz High-intermodulation Microwave Component, Dimensions 190.9 x 42 x 39mm

Get Latest Price
Payment Type:
T/T, L/C, Western Union, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, PayPal
Product Description
Product Description
  • Specifications:
    • Frequency range: 698 - 2,700MHz
    • Insertion loss: ≤0.45dB
    • Ripple: ≤0.5dB
    • Return loss/VSWR: ≤-20dB/1.22
    • Isolation: ≥25dB
    • Intermodulation: ≤-150dBc (3rd order with 2 x 20W)
    • Power handling: 300W (average)
    • Impedance: 50Ω
    • DC/AISG transparency: NA
    • Lightning protection: NA
    • Environment:
      • Operating temperature range: -35 to 75°C
      • Storage temperature range: -40 to 85°C
      • Relative humidity range: 5 - 95% RH
    • Applications: indoor or outdoor (IP66)
    • Mechanical:
      • Connectors: 4 pieces DIN-female
      • Dimensions: 190.9 x 42 x 39mm (without connectors)
      • Weight: 1kg
    • Packing: 1 piece/box
  • Frequency range: 698 - 2,700MHz
  • Insertion loss: ≤0.45dB
  • Ripple: ≤0.5dB
  • Return loss/VSWR: ≤-20dB/1.22
  • Isolation: ≥25dB
  • Intermodulation: ≤-150dBc (3rd order with 2 x 20W)
  • Power handling: 300W (average)
  • Impedance: 50Ω
  • DC/AISG transparency: NA
  • Lightning protection: NA
  • Environment:
    • Operating temperature range: -35 to 75°C
    • Storage temperature range: -40 to 85°C
    • Relative humidity range: 5 - 95% RH
  • Applications: indoor or outdoor (IP66)
  • Mechanical:
    • Connectors: 4 pieces DIN-female
    • Dimensions: 190.9 x 42 x 39mm (without connectors)
    • Weight: 1kg
  • Packing: 1 piece/box
  • Operating temperature range: -35 to 75°C
  • Storage temperature range: -40 to 85°C
  • Relative humidity range: 5 - 95% RH
  • Connectors: 4 pieces DIN-female
  • Dimensions: 190.9 x 42 x 39mm (without connectors)
  • Weight: 1kg
