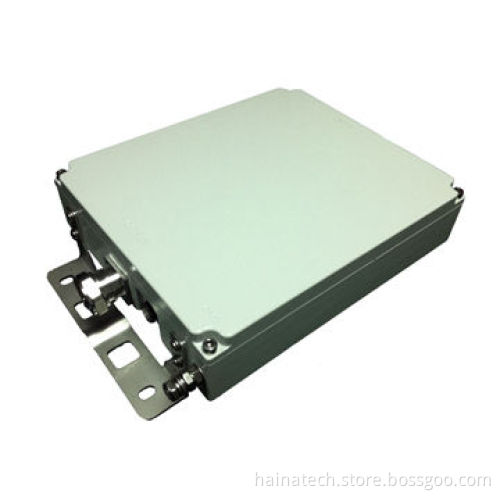

380-960/1,710-2,700MHz Combiner High-inter-modulation with 50 Ohms Impedance
  • 380-960/1,710-2,700MHz Combiner High-inter-modulation with 50 Ohms Impedance
  • 380-960/1,710-2,700MHz Combiner High-inter-modulation with 50 Ohms Impedance
380-960/1,710-2,700MHz Combiner High-inter-modulation with 50 Ohms Impedance
380-960/1,710-2,700MHz Combiner High-inter-modulation with 50 Ohms Impedance

380-960/1,710-2,700MHz Combiner High-inter-modulation with 50 Ohms Impedance

Get Latest Price
Payment Type:
T/T, L/C, Western Union, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, PayPal
Product Description
Product Description
  • Specifications:
    • Electrical:
      • Frequency range: 380-960/1,710-2,170MHz
      • Insertion loss: <0.3dB
      • Return loss: ≤-20dB
      • Isolation: ≥50dB
      • Impedance: 50Ω
      • Input power: 300W (avg)
      • Intermodulation: 150dBc at 2 x 43dBm
      • DC/AISG DC path thru each port to ant, rated at 3A (maximum)
      • Lighting protection: 3KA, 10/350us pulse
    • Environment:
      • Operating temperature range: -40 to 60°C
      • Storage temperature range: -35 to 75°C
      • Relative humidity range: 5-95% RH
      • Application: IP66
    • Mechanical:
      • Connector: DIN-F
      • Weight: 1.3kg
      • Diameter: (L x W x H) 178 x 100 x 50mm/(272 x 110 x 65mm maximum)
      • Packing: 1 piece/box
  • Electrical:
    • Frequency range: 380-960/1,710-2,170MHz
    • Insertion loss: <0.3dB
    • Return loss: ≤-20dB
    • Isolation: ≥50dB
    • Impedance: 50Ω
    • Input power: 300W (avg)
    • Intermodulation: 150dBc at 2 x 43dBm
    • DC/AISG DC path thru each port to ant, rated at 3A (maximum)
    • Lighting protection: 3KA, 10/350us pulse
  • Environment:
    • Operating temperature range: -40 to 60°C
    • Storage temperature range: -35 to 75°C
    • Relative humidity range: 5-95% RH
    • Application: IP66
  • Mechanical:
    • Connector: DIN-F
    • Weight: 1.3kg
    • Diameter: (L x W x H) 178 x 100 x 50mm/(272 x 110 x 65mm maximum)
    • Packing: 1 piece/box
  • Frequency range: 380-960/1,710-2,170MHz
  • Insertion loss: <0.3dB
  • Return loss: ≤-20dB
  • Isolation: ≥50dB
  • Impedance: 50Ω
  • Input power: 300W (avg)
  • Intermodulation: 150dBc at 2 x 43dBm
  • DC/AISG DC path thru each port to ant, rated at 3A (maximum)
  • Lighting protection: 3KA, 10/350us pulse
  • Operating temperature range: -40 to 60°C
  • Storage temperature range: -35 to 75°C
  • Relative humidity range: 5-95% RH
  • Application: IP66
  • Connector: DIN-F
  • Weight: 1.3kg
  • Diameter: (L x W x H) 178 x 100 x 50mm/(272 x 110 x 65mm maximum)
  • Packing: 1 piece/box
