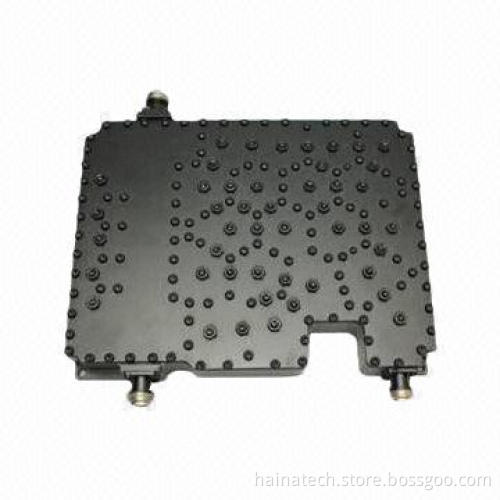

Combiner, GSM, DCS, TD (FAE)/WLAN High-intermodulation, -30 to +55°C Operating Temperature
  • Combiner, GSM, DCS, TD (FAE)/WLAN High-intermodulation, -30 to +55°C Operating Temperature
  • Combiner, GSM, DCS, TD (FAE)/WLAN High-intermodulation, -30 to +55°C Operating Temperature
Combiner, GSM, DCS, TD (FAE)/WLAN High-intermodulation, -30 to +55°C Operating Temperature
Combiner, GSM, DCS, TD (FAE)/WLAN High-intermodulation, -30 to +55°C Operating Temperature

Combiner, GSM, DCS, TD (FAE)/WLAN High-intermodulation, -30 to +55°C Operating Temperature

Get Latest Price
Payment Type:
T/T, L/C, Western Union, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, PayPal
Product Description
Product Description
  • Specifications:
    • Frequency range GSM, DCS, TD-SCDMA (FAE): 880-960, 1,710-2,025, 2,300-2,380MHz
    • WLAN 2,400-2,500MHz
    • Insertion loss: ≤0.6 (880-2,025MHz), ≤1.2 (2,300-2,500MHz)
    • Ripple in band: ≤0.5 (880-2,025MHz), ≤1.8 (2,300-2,500MHz)
    • VSWR: ≤19dB/1.25
    • Isolation CH1: ≥80 (885-2,025) and CH2: ≥90 (2,300-2,500MHz)
    • Intermodulation: ≤-150dBc (3rd order with 2 x 20W)
    • Intermodulation: ≤-155dBc (5th order with 2 x 20W)
    • Power: 200W (average)
    • Impedance: 50Ω
    • DC/AISG path: NA
    • Lightning protection: NA
    • Environment:
      • Operating temperatures: -30 to 55°C
      • Storage temperatures: -40 to 85°C
      • Relative humidity range: 5-95% RH
      • Indoor or outdoor
    • Mechanical:
      • Connectors N-female
      • Dimensions: 207 x 160 x 34mm
      • Weight: 1.178kg
  • Packing: 1 piece in box
  • Frequency range GSM, DCS, TD-SCDMA (FAE): 880-960, 1,710-2,025, 2,300-2,380MHz
  • WLAN 2,400-2,500MHz
  • Insertion loss: ≤0.6 (880-2,025MHz), ≤1.2 (2,300-2,500MHz)
  • Ripple in band: ≤0.5 (880-2,025MHz), ≤1.8 (2,300-2,500MHz)
  • VSWR: ≤19dB/1.25
  • Isolation CH1: ≥80 (885-2,025) and CH2: ≥90 (2,300-2,500MHz)
  • Intermodulation: ≤-150dBc (3rd order with 2 x 20W)
  • Intermodulation: ≤-155dBc (5th order with 2 x 20W)
  • Power: 200W (average)
  • Impedance: 50Ω
  • DC/AISG path: NA
  • Lightning protection: NA
  • Environment:
    • Operating temperatures: -30 to 55°C
    • Storage temperatures: -40 to 85°C
    • Relative humidity range: 5-95% RH
    • Indoor or outdoor
  • Mechanical:
    • Connectors N-female
    • Dimensions: 207 x 160 x 34mm
    • Weight: 1.178kg
  • Operating temperatures: -30 to 55°C
  • Storage temperatures: -40 to 85°C
  • Relative humidity range: 5-95% RH
  • Indoor or outdoor
  • Connectors N-female
  • Dimensions: 207 x 160 x 34mm
  • Weight: 1.178kg
