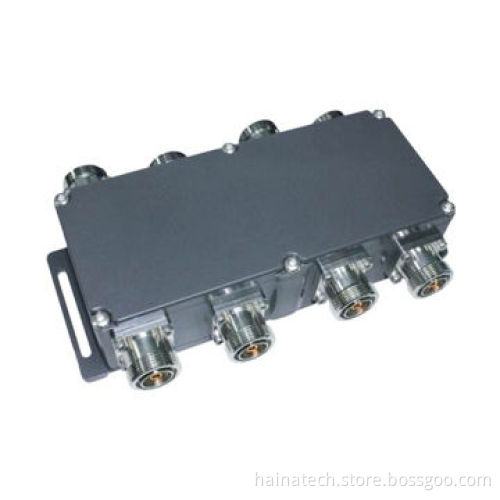

Microwave, 3dB Hybrid Unit, 4 Input/Output, 698-2,700MHz High-intermodulation

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, PayPal

Product Description

Specifications:

Electrical:
- Frequency range 698-2,700MHz
- Insertion loss ≤6.9dB
- Return loss/VSWR ≤-20 dB/1.22
- Isolation ≥25dB
- Inter modulation ≤-150dBc (3rd order with 2 x 20W)
- Power handling: 500W
- Impedance: 50Ω
- Dc/AISG transparency DC path in 1→out 1 in 2→out 2
- Dc/AISG transparency DC path in 3→out 3 in 4→out 4(maximum 6.5 A AISG 2.0 conform)
- Lightning protection NA
Environmental:
- Operating temperature range -10 to +65°C
- Storage temperature range -40 to +80°C
- Relative humidity 5 - 95% RH
Mechanical:
- Connectors type: 8 pieces DIN-F
- Dimensions: 250 x 100 x 60mm (without connectors)
- Weight: 2.2kg
Applications: indoor or outdoor (IP66)
Packing: 1 piece/box

Electrical:

Frequency range 698-2,700MHz
Insertion loss ≤6.9dB
Return loss/VSWR ≤-20 dB/1.22
Isolation ≥25dB
Inter modulation ≤-150dBc (3rd order with 2 x 20W)
Power handling: 500W
Impedance: 50Ω
Dc/AISG transparency DC path in 1→out 1 in 2→out 2
Dc/AISG transparency DC path in 3→out 3 in 4→out 4(maximum 6.5 A AISG 2.0 conform)
Lightning protection NA
