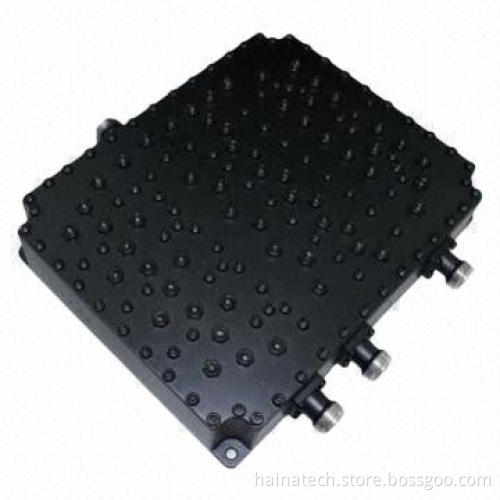

Combiner, GSM and DCS/TD (FA)/TD (E) High-inter Modulation, 50Ω Impedance
  • Combiner, GSM and DCS/TD (FA)/TD (E) High-inter Modulation, 50Ω Impedance
  • Combiner, GSM and DCS/TD (FA)/TD (E) High-inter Modulation, 50Ω Impedance
Combiner, GSM and DCS/TD (FA)/TD (E) High-inter Modulation, 50Ω Impedance
Combiner, GSM and DCS/TD (FA)/TD (E) High-inter Modulation, 50Ω Impedance

Combiner, GSM and DCS/TD (FA)/TD (E) High-inter Modulation, 50Ω Impedance

Get Latest Price
Payment Type:
T/T, L/C, Western Union, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, PayPal
Product Description
Product Description
  • Specifications:
    • Electrical:
      • Frequency range: GSM and DCS 885-960 and 1,710-1,830MHz TD (FA), TD (E) 1,880-2,025, 2,300-2,400MHz
      • Insertion loss: ≤0.6dB
      • Ripple in band: ≤0.4dB
      • VSWR: ≤-21/1.2dB
      • Isolation: ≥80dB
      • Power: 200W
      • Inter modulation: ≤-150dBc at (+43dBm x 2)
      • Impedance: 50Ω
    • Environment:
      • Operating temperatures: -25 -55°C
      • Temperatures: -40 -85°C
      • Relative humidity range: 0-95% RH
      • Air pressures: 55-106kPa
      • Indoor or outdoor: indoor
    • Mechanical:
      • Connectors: 4 pieces N-F
      • Surfacing: black painting
      • Dimensions: 183 x 149 x 36mm
      • Weight: 1.4kg
      • Packing: 1 pieces/box
  • Electrical:
    • Frequency range: GSM and DCS 885-960 and 1,710-1,830MHz TD (FA), TD (E) 1,880-2,025, 2,300-2,400MHz
    • Insertion loss: ≤0.6dB
    • Ripple in band: ≤0.4dB
    • VSWR: ≤-21/1.2dB
    • Isolation: ≥80dB
    • Power: 200W
    • Inter modulation: ≤-150dBc at (+43dBm x 2)
    • Impedance: 50Ω
  • Environment:
    • Operating temperatures: -25 -55°C
    • Temperatures: -40 -85°C
    • Relative humidity range: 0-95% RH
    • Air pressures: 55-106kPa
    • Indoor or outdoor: indoor
  • Mechanical:
    • Connectors: 4 pieces N-F
    • Surfacing: black painting
    • Dimensions: 183 x 149 x 36mm
    • Weight: 1.4kg
    • Packing: 1 pieces/box
  • Frequency range: GSM and DCS 885-960 and 1,710-1,830MHz TD (FA), TD (E) 1,880-2,025, 2,300-2,400MHz
  • Insertion loss: ≤0.6dB
  • Ripple in band: ≤0.4dB
  • VSWR: ≤-21/1.2dB
  • Isolation: ≥80dB
  • Power: 200W
  • Inter modulation: ≤-150dBc at (+43dBm x 2)
  • Impedance: 50Ω
  • Operating temperatures: -25 -55°C
  • Temperatures: -40 -85°C
  • Relative humidity range: 0-95% RH
  • Air pressures: 55-106kPa
  • Indoor or outdoor: indoor
  • Connectors: 4 pieces N-F
  • Surfacing: black painting
  • Dimensions: 183 x 149 x 36mm
  • Weight: 1.4kg
  • Packing: 1 pieces/box
