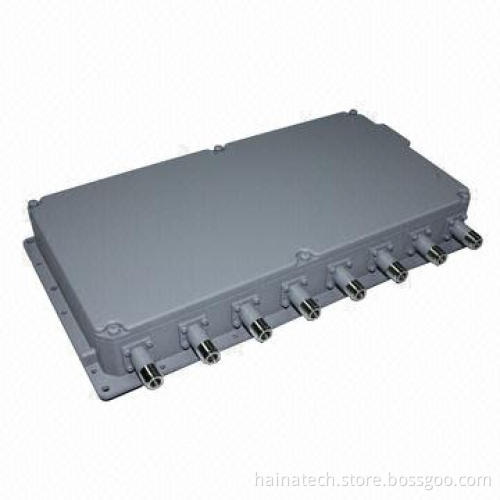

Filter, 2575.25-2614.75MHz, High Intermodulation

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, PayPal

Product Description

Electrical specifications:

Environment specifications:

Mechanical specifications:

Weight: 5.9kg

Packing: 1pc/box

Frequency range: 2575.25-2614.75MHz

Insertion loss: ≤2.4dB (ordinary temperature), ≤2.6dB (special temperature)

Rejection ≥60dB at 9kHz-2500MHz

Rejection ≥48dB at 2500-2565MHz

Rejection ≥45dB at 2565-2570.5MHz (ordinary temperature)

Rejection ≥43dB at 2565-2570.5MHz (special temperature)

Rejection ≥ 35dB at 2619.5-2636MHz (ordinary temperature)

Rejection ≥ 33dB at 2619.5z-2636MHz (special temperature)

Rejection ≥ 58dB at 2636-2680MHz

Rejection ≥ 60dB at 2680MHz-4GHz

Rejection ≥ 65dB at 5140MHz-5360GHz

Isolation: ≥90 (TX1-ANT2,TX2-ANT1,ANT3 TX7-ANT8)

Return loss: (VSWR) ≤1.25 (ordinary temperature), ≤1.3 (special temperature)

Intermodulation: (dBc) ≤ -125 at 2 x 43dBm

Power handling: 30W(average), 300W (peak)

Impedance: 50Ω

Group delay: ≤150ns

Operating temperatures: -40 to 85°C

Relative humidity range: 0-95%

Application: outdoor or indoor (IP66)

Connectors: 8pcs N-female

Dimensions: 415 x 225 x 56mm (without connectors)
