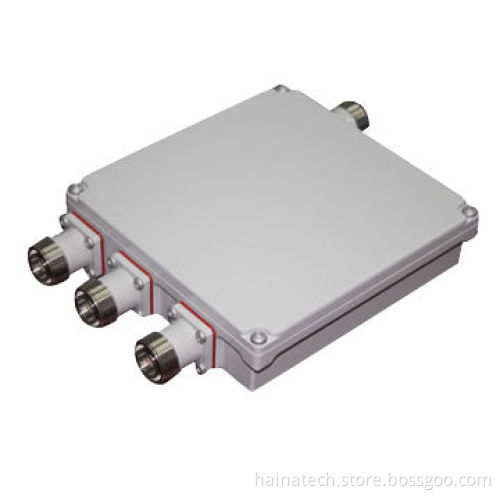

Triple-band 3-way combiner

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Electrical specifications:

Environment specifications:

Mechanical specifications:

Connectors: 4pcs Din-female (long neck)-single unit
Weight: single unit: 3.8kg/double unit: 7.7kg
Dimensions (without connector): single unit: 200*165*62mm/double unit200*165*124mm
Packing: 1pc/box

Frequency range: 380-960/1710-1880/1920-2170MHz

Insertion loss: ≤0.3dB

Ripple in band: ≤0.25dB

Rejection: ≥50dB

VSWR: ≤1.25

Intermodulation: ≤-153dBc (3rd order; with 2 × 20W)

Impedance: 50Ω

Input power: ≤300W (avg.)

Operating temperatures: - 20 - 60°C

Relative humidity range: 5-95%

Applications: Indoor or outdoor (IP67)

Connectors: 4pcs Din-female (long neck)-single unit

Weight: single unit: 3.8kg/double unit: 7.7kg

Dimensions (without connector): single unit: 200*165*62mm/double unit200*165*124mm

Packing: 1pc/box
