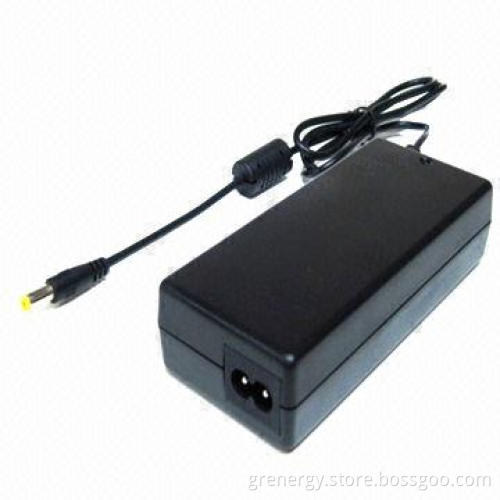

10 Series 36V E-scooter Charger, 42V, 2A with UL, GS, PSE, CE Safety Marks
  • 10 Series 36V E-scooter Charger, 42V, 2A with UL, GS, PSE, CE Safety Marks
10 Series 36V E-scooter Charger, 42V, 2A with UL, GS, PSE, CE Safety Marks

10 Series 36V E-scooter Charger, 42V, 2A with UL, GS, PSE, CE Safety Marks

Get Latest Price
Payment Type:
T/T, L/C, PayPal or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, PayPal or Western Union
Product Description
Product Description
  • Specifications:
    • Maximum output power: 90W
    • Input voltage: 100 to 240V AC
    • Nominal output voltage: 36V
    • Maximum output voltage: 42V
    • Maximum output current: 2A
    • Line frequency: 50 to 60Hz
    • Efficiency (at 100% load): >=80%
    • Ripple: <=1%*Vo
    • Temperature range: <65%
    • Color: black
    • Type: electric
    • Dimensions: 150 x 70 x 35mm
    • Type: desktop
    • Fit for power tool, e-bike
    • Packaging detail: white box, 20 pieces/carton
    • Delivery detail: 3 weeks
    • Protection: short circuit protection, over-voltage protection,over-current protection
    • Reverse polarity connect protection
  • General specifications:
    • 3-step charging control (pre-charge-CC-CV)
    • Option:
      • NTC inside
      • 100% cut off when battery fully charged
    • Dual-color LED indicator: (charging: red, fully charged or noload: green)
    • Lightweight and compact
    • High-efficiency and low-power consumption
  • Environmental specifications:
    • Operating temperature: 0 to 45°C
    • Storage temperature: -20 to 70°C
    • Humidity: <65% RH
  • Reliability specifications:
    • Insulation class: II
    • Electrical safety: EN60335, IEC60335, UL1310
    • EMC standard: EN55014-1, EN55014-2, FCC Part15
  • Maximum output power: 90W
  • Input voltage: 100 to 240V AC
  • Nominal output voltage: 36V
  • Maximum output voltage: 42V
  • Maximum output current: 2A
  • Line frequency: 50 to 60Hz
  • Efficiency (at 100% load): >=80%
  • Ripple: <=1%*Vo
  • Temperature range: <65%
  • Color: black
  • Type: electric
  • Dimensions: 150 x 70 x 35mm
  • Type: desktop
  • Fit for power tool, e-bike
  • Packaging detail: white box, 20 pieces/carton
  • Delivery detail: 3 weeks
  • Protection: short circuit protection, over-voltage protection,over-current protection
  • Reverse polarity connect protection
  • 3-step charging control (pre-charge-CC-CV)
  • Option:
    • NTC inside
    • 100% cut off when battery fully charged
  • Dual-color LED indicator: (charging: red, fully charged or noload: green)
  • Lightweight and compact
  • High-efficiency and low-power consumption
  • NTC inside
  • 100% cut off when battery fully charged
  • Operating temperature: 0 to 45°C
  • Storage temperature: -20 to 70°C
  • Humidity: <65% RH
  • Insulation class: II
  • Electrical safety: EN60335, IEC60335, UL1310
  • EMC standard: EN55014-1, EN55014-2, FCC Part15
