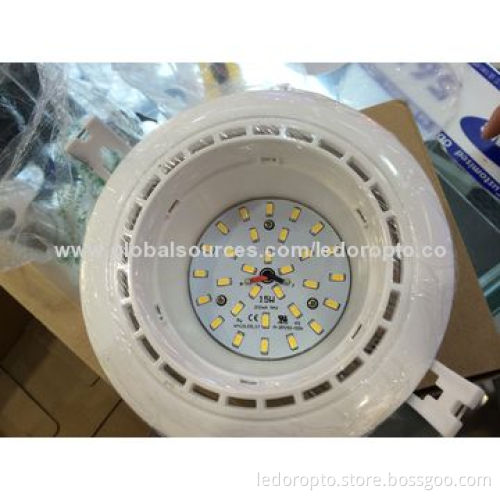

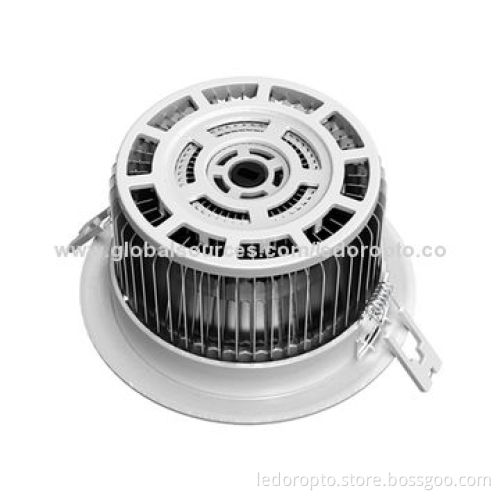

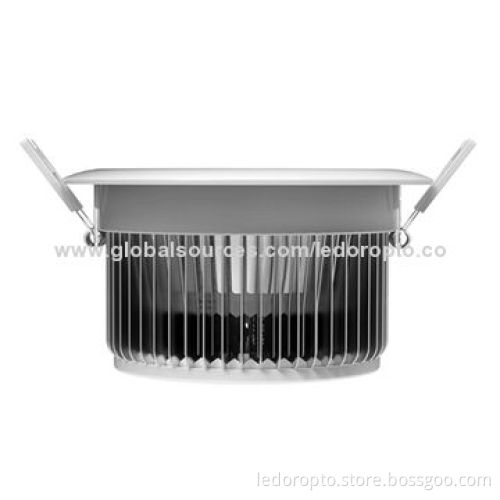

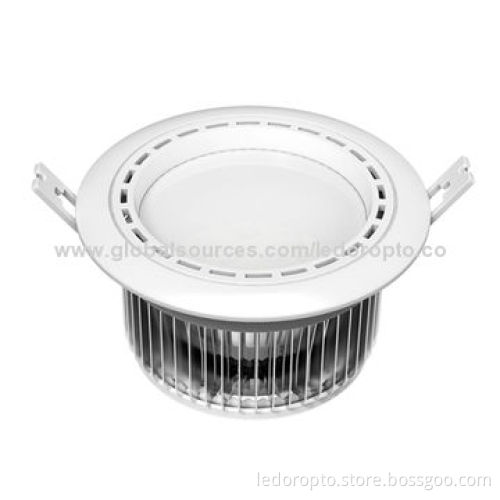

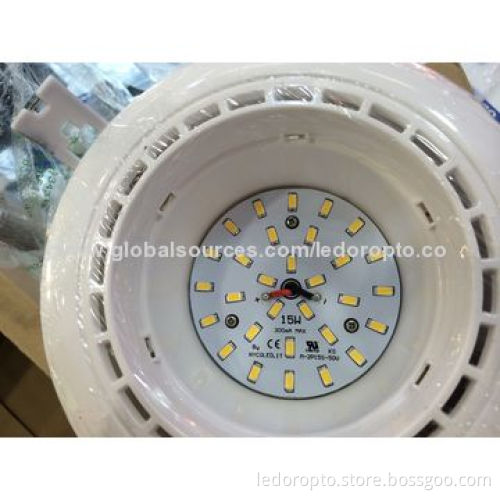

LED 36W LED Downlight with 76pcs Aluminum Fin, Samsung 5630
  • LED 36W LED Downlight with 76pcs Aluminum Fin, Samsung 5630
  • LED 36W LED Downlight with 76pcs Aluminum Fin, Samsung 5630
  • LED 36W LED Downlight with 76pcs Aluminum Fin, Samsung 5630
  • LED 36W LED Downlight with 76pcs Aluminum Fin, Samsung 5630
  • LED 36W LED Downlight with 76pcs Aluminum Fin, Samsung 5630
  • LED 36W LED Downlight with 76pcs Aluminum Fin, Samsung 5630
  • LED 36W LED Downlight with 76pcs Aluminum Fin, Samsung 5630
  • LED 36W LED Downlight with 76pcs Aluminum Fin, Samsung 5630
LED 36W LED Downlight with 76pcs Aluminum Fin, Samsung 5630
LED 36W LED Downlight with 76pcs Aluminum Fin, Samsung 5630
LED 36W LED Downlight with 76pcs Aluminum Fin, Samsung 5630
LED 36W LED Downlight with 76pcs Aluminum Fin, Samsung 5630
LED 36W LED Downlight with 76pcs Aluminum Fin, Samsung 5630
LED 36W LED Downlight with 76pcs Aluminum Fin, Samsung 5630
LED 36W LED Downlight with 76pcs Aluminum Fin, Samsung 5630
LED 36W LED Downlight with 76pcs Aluminum Fin, Samsung 5630

LED 36W LED Downlight with 76pcs Aluminum Fin, Samsung 5630

Get Latest Price
Payment Type:
T/T, Cash
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Cash
Product Description
Product Description
  • Features:
    • ​For Body
      • Model no.: LD-MO-15W-NW-KR56-DLP

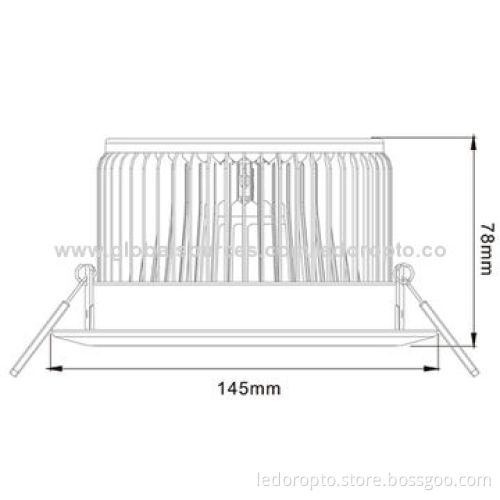

      • Dimensions: ø145 x 78mm
      • Input: 85 to 265V AC, 50/60Hz
      • Driver: external
      • Working temperature: -20 - 40°C
      • Surface colors: silver + white
      • Aluminum fins: 76 pieces/5,000cm²
      • Material: 1,060 aluminum cooling fins, PMMA lens, PBT

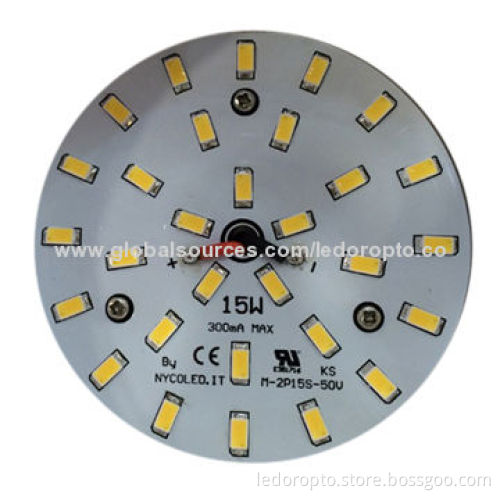

    • For PCB:
      • ​PCB dimension: ø76mm
      • Thickness: 2.0mm
      • Thermal conductivity: 2.0 C/W
      • Current: 300mA (maximum) C.C
      • LED chips: Samsung 5630
      • CCT: 3,900-4,200K
      • Luminous flux: 1590lm
      • CRI: >80
  • Applications:
    • Widely used in restaurants, hotels, historical and modern buildings, museums, art galleries, sculptures and plastic arts
  • ​For Body
    • Model no.: LD-MO-15W-NW-KR56-DLP
    • Dimensions: ø145 x 78mm
    • Input: 85 to 265V AC, 50/60Hz
    • Driver: external
    • Working temperature: -20 - 40°C
    • Surface colors: silver + white
    • Aluminum fins: 76 pieces/5,000cm²
    • Material: 1,060 aluminum cooling fins, PMMA lens, PBT
  • For PCB:
    • ​PCB dimension: ø76mm
    • Thickness: 2.0mm
    • Thermal conductivity: 2.0 C/W
    • Current: 300mA (maximum) C.C
    • LED chips: Samsung 5630
    • CCT: 3,900-4,200K
    • Luminous flux: 1590lm
    • CRI: >80
  • Model no.: LD-MO-15W-NW-KR56-DLP
  • Dimensions: ø145 x 78mm
  • Input: 85 to 265V AC, 50/60Hz
  • Driver: external
  • Working temperature: -20 - 40°C
  • Surface colors: silver + white
  • Aluminum fins: 76 pieces/5,000cm²
  • Material: 1,060 aluminum cooling fins, PMMA lens, PBT
  • ​PCB dimension: ø76mm
  • Thickness: 2.0mm
  • Thermal conductivity: 2.0 C/W
  • Current: 300mA (maximum) C.C
  • LED chips: Samsung 5630
  • CCT: 3,900-4,200K
  • Luminous flux: 1590lm
  • CRI: >80
  • Widely used in restaurants, hotels, historical and modern buildings, museums, art galleries, sculptures and plastic arts
