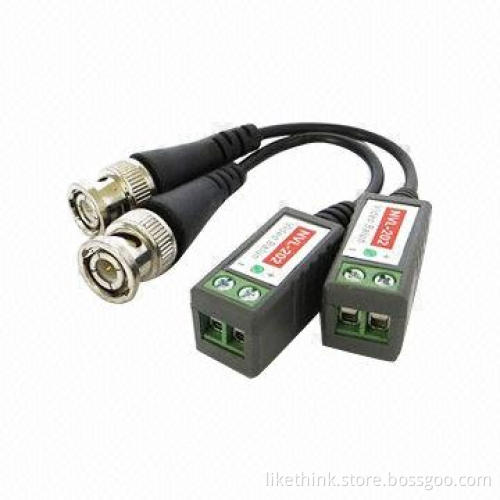

Video Balun with 15KHz-5MHz 60dB Typical, 400m Color Transmission Distance
  • Video Balun with 15KHz-5MHz 60dB Typical, 400m Color Transmission Distance
Video Balun with 15KHz-5MHz 60dB Typical, 400m Color Transmission Distance

Video Balun with 15KHz-5MHz 60dB Typical, 400m Color Transmission Distance

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Frequency response: DC-5MHz
  • Attenuation: 1.5dB maximum
  • Common mode/differential mode rejection: 15KHz-5MHz 60dB typical
  • BNC coaxial cable impedance: 75Ω terminal UTP: 100Ω
  • Line type
  • Size: 24AWG or larger than class 3
  • Impedance: 100Ω ± 20%
  • DC loop resistance: 18Ω/100m
  • Differential capacitance: 62pf/m
  • Environment temperature: -20 - +75°C
  • Transient immunity: 6000V 1.2μS x 50μS
