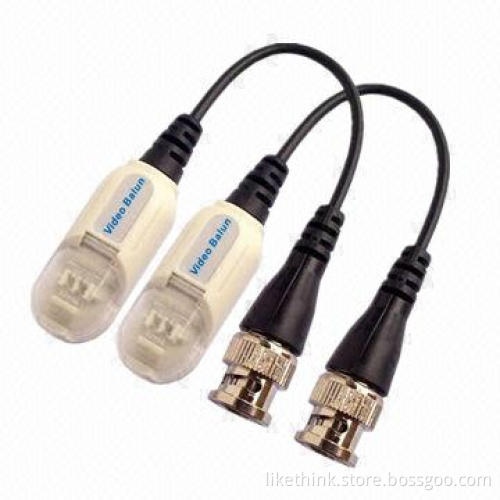

Video Balun, 300 Meters Transmission Distance Without Power and Reduce Project Costs

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Transfer effect: real-time transmission of AV signal clear, high-quality video effects
Transmission distance: 300 meters transmission distance without power
High-safety performance: interference suppression, three lightning, fire-resistant, high-temperature, anti-static, low-EMI, line transient surge protection
Design science: with thread, easy to install on the hard disk recorder, convenient interface aesthetics, SMT surface mount technology design
Installation is simple: without the use of tools, manual can be installed

Performance parameters:

Dimensions: 38 x 22 x 20mm (BNC connector with cable included)
Case material: ABS plastic body
Color: black matte
Weight: 74g (one pair, with packaging)
Input and output: BNC interface, UTP +/- card line interface
Input signal: 1-2Vp-p unbalanced input
Output signal: 1-2Vp-p balanced output
Video transmission distance: 0-300m (CAT5/5E/6 UTP)
Lightning immunity: built-in anti-static/induced lightning protection
Videos:
- Frequency response: DC to 6MHz
- Common-mode rejection ratio: 0 to 6MHz 60dB (typical)
- UTP (unshielded twisted pair) 100 Ohms
Cables:
- Cable type: unshielded twisted pair, 24-16AWG
- Cable type: category 5 or category 5 or better
- Cable impedance: 100 ±20 Ohms
- Distributed capacitance: less than 62pF/m
- DC loop resistance: 18 Ohm/100m
- Power requirements: no power supply
Environmental requirements:
- Operating temperature: -20 to 70℃
- Relative humidity: 0 to 95% RH (non-condensing)
- Storage temperature: -40 to 150℃
Transient inhibition: differential mode 4,000V, 10/700us
