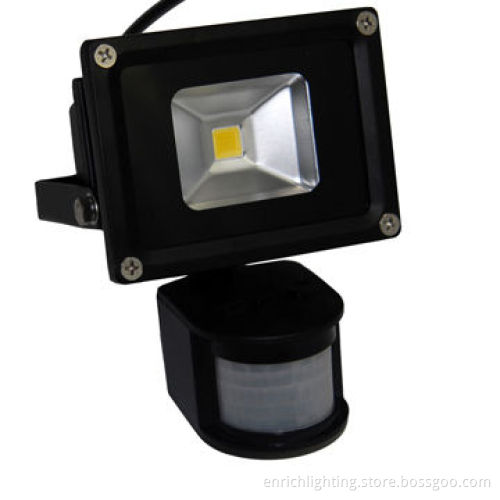

PIR Sensor LED Floodlight with High-bright Bridgelux Chip, Factory Direct Price

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Input voltage: 85 to 265V AC
Frequency range: 50 to 60Hz
Power factor: >0.98
Power efficiency: >87%
LED quantity: 1 piece
LED power consumption: 10W
System power consumption: 11W
LED luminous efficiency: 60 to 70lm/W
LED initial flux: 650lm
Lamp efficiency: >85%
Average illuminance (height):
- 1m: 70 lux
- 2m: 17 lux
- 3m: 7.7 lux
Illuminance area (height):
- 1m: 3.3 x 3.3m
- 2m: 6.5 x 6.5m
- 3m: 9.8 x 9.8m
Illuminance uniformity: >0.6
Color temperature:
- Warm white: 2,700 to 3,900K
- Pure white: 3,900 to 6,000K
- Cool white: 6,000 to 7,000K
Color rendering index:
- Warm white: >68Ra
- Pure and cool white: >75Ra
Light distribution: symmetric expression
Light design: LED + reflector twice luminous intensity distribution
Junction temperature: d80°C
Working temperature: -40 to 55°C
Storage temperature: -25 to 65°C
IP grade: IP65
Working lifespan: 50,000 hours
Power line: 0.75mm² three-core wire
Connect wire:
Brown: L
Blue: N
Yellow/green: G

Color of the lamp shell: black or silver

Comes with CE and RoHS marks

Input voltage: 85 to 265V AC

Frequency range: 50 to 60Hz

Power factor: >0.98

Power efficiency: >87%

LED quantity: 1 piece

LED power consumption: 10W

System power consumption: 11W

LED luminous efficiency: 60 to 70lm/W

LED initial flux: 650lm

Lamp efficiency: >85%

Average illuminance (height):

1m: 70 lux
2m: 17 lux
3m: 7.7 lux

Illuminance area (height):

1m: 3.3 x 3.3m
2m: 6.5 x 6.5m
3m: 9.8 x 9.8m

Illuminance uniformity: >0.6

Color temperature:

Warm white: 2,700 to 3,900K
Pure white: 3,900 to 6,000K
Cool white: 6,000 to 7,000K

Color rendering index:

Warm white: >68Ra
Pure and cool white: >75Ra

Light distribution: symmetric expression

Light design: LED + reflector twice luminous intensity distribution

Junction temperature: d80°C

Working temperature: -40 to 55°C

Storage temperature: -25 to 65°C

IP grade: IP65

Working lifespan: 50,000 hours

Power line: 0.75mm² three-core wire

Connect wire:

Brown: L

Blue: N

Yellow/green: G

1m: 70 lux

2m: 17 lux

3m: 7.7 lux

1m: 3.3 x 3.3m

2m: 6.5 x 6.5m

3m: 9.8 x 9.8m

Warm white: 2,700 to 3,900K

Pure white: 3,900 to 6,000K

Cool white: 6,000 to 7,000K

Warm white: >68Ra

Pure and cool white: >75Ra
