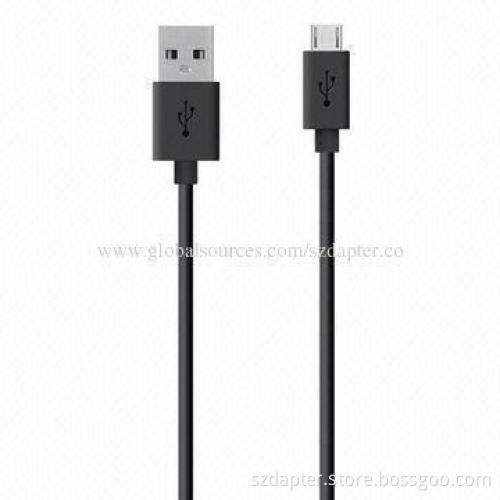

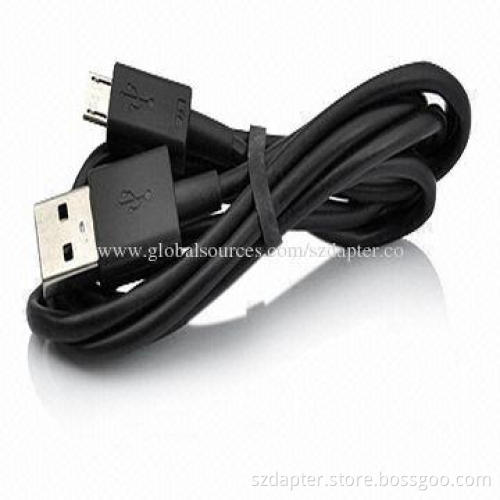

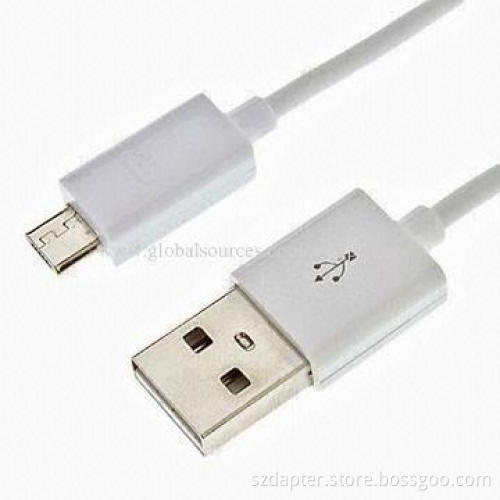

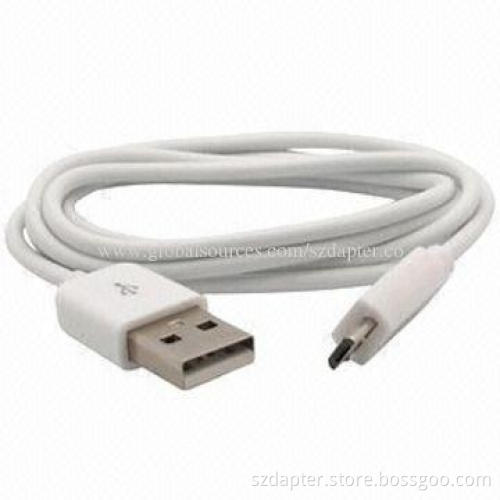

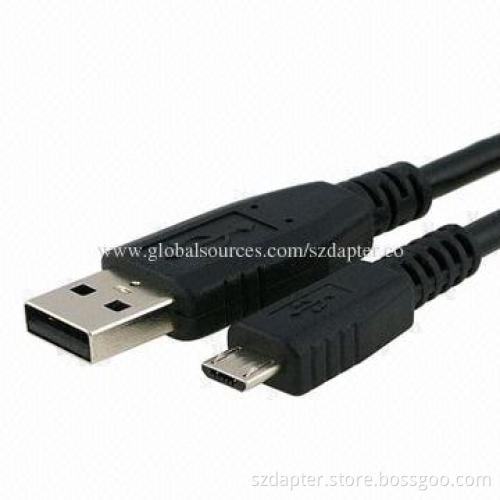

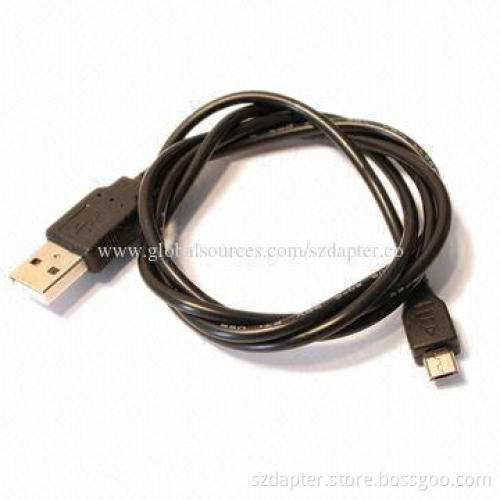

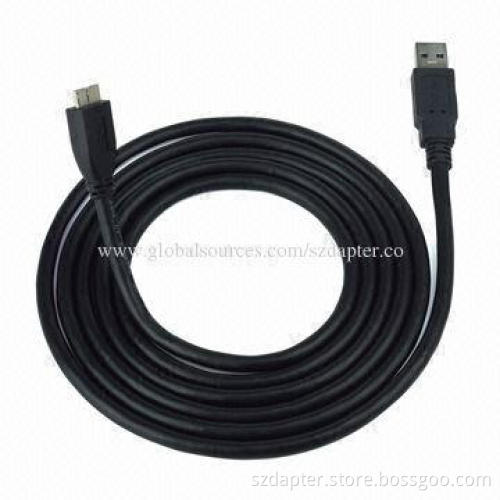

Micro USB Data Cable

Get Latest Price

Payment Type:: T/T in Advance, PayPal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, PayPal, Western Union

Product Description

Features and benefits:

High-quality micro USB data cable
Sync data transfer rates with low noise
Twisted pair wire construction for consistent data transmission
Fully compatible with PC and Mac

Specifications:

Connectors: USB2.0 A male to micro A
PC and Mac compatible
12Mbps transmission speed
4 pure copper cores, 7 lines in one core
OD: 3.0mm

Electrical:

100% open and short test
Hi-pot: DC 300V, 10ms
Insulation resistance: 10MΩ/300V minimum
Contact resistance: 0.01Ω maximum
Shield up to: 65% braid
Working temperature: -25 - +85ºC

Mechanical:

Over mold: PVC 70Pa, UL94V-0, black
Pre-mold: PE low density
Contact: copper alloy
Insertion force: 35N maximum
Withdraw force: 10N minimum

Applications:

Removable hard drives
Flash drives
High-end video and imaging devices
Portable devices, camera, recorder and mobile phone
High-resolution printer/scanner
Video game consoles

Quality:

18 months warranty
CE, RoHS-certified

High-quality micro USB data cable

Sync data transfer rates with low noise

Twisted pair wire construction for consistent data transmission

Fully compatible with PC and Mac

Connectors: USB2.0 A male to micro A

PC and Mac compatible

12Mbps transmission speed

4 pure copper cores, 7 lines in one core

OD: 3.0mm

100% open and short test

Hi-pot: DC 300V, 10ms

Insulation resistance: 10MΩ/300V minimum

Contact resistance: 0.01Ω maximum

Shield up to: 65% braid

Working temperature: -25 - +85ºC

Over mold: PVC 70Pa, UL94V-0, black

Pre-mold: PE low density

Contact: copper alloy

Insertion force: 35N maximum

Withdraw force: 10N minimum

Removable hard drives

Flash drives

High-end video and imaging devices

Portable devices, camera, recorder and mobile phone

High-resolution printer/scanner

Video game consoles

18 months warranty

CE, RoHS-certified
