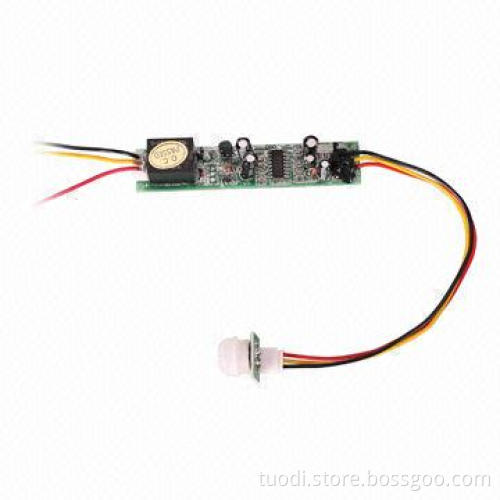

IR Infrared Motion Detector/Sensor Module, Green Color (5-24V DC), 300W Output Current

IR Infrared Motion Detector/Sensor Module, Green Color (5-24V DC), 300W Output Current

Get Latest Price

Payment Type:: T/T, Western Union, PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, PayPal

Product Description

Specifications:

Function description: relay controls loading, can installed in different lamp holders
Operating voltage: 110 to 250V AC (50 to 60Hz)
Operating temperature: -20 to +50°C
Static current: Output current: 300W
Loading capacity: all kinds of lights, appliances
Connecting style:
- Input: 220V AC
- Output: 220V AC
Output mode: induction output
Delay shutdown time: 16 seconds ±20%
Induction mode: passive
Induction angle: 110°coning angle
Detecting distance: 4 to 5m
Dimensions 110 x 14mm

Range of applications, functions and features:

Automatic induction: when people enter into the range of induction, it will turn on, when people leave and it will turn off with delay
It can be applied to corridor, passageway, toilet, basement, warehouse, garage and more which have the function of automatic lighting, and control
Automatic random delay: after it turns on, in the delay period, if there is presence of people, it keeps on working until people leave, than turn on with delay

Function description: relay controls loading, can installed in different lamp holders

Operating voltage: 110 to 250V AC (50 to 60Hz)

Operating temperature: -20 to +50°C

Static current: Output current: 300W

Loading capacity: all kinds of lights, appliances

Connecting style:

Input: 220V AC
Output: 220V AC

Output mode: induction output

Delay shutdown time: 16 seconds ±20%

Induction mode: passive

Induction angle: 110°coning angle

Detecting distance: 4 to 5m

Dimensions 110 x 14mm

Input: 220V AC

Output: 220V AC

Automatic induction: when people enter into the range of induction, it will turn on, when people leave and it will turn off with delay

It can be applied to corridor, passageway, toilet, basement, warehouse, garage and more which have the function of automatic lighting, and control

Automatic random delay: after it turns on, in the delay period, if there is presence of people, it keeps on working until people leave, than turn on with delay
