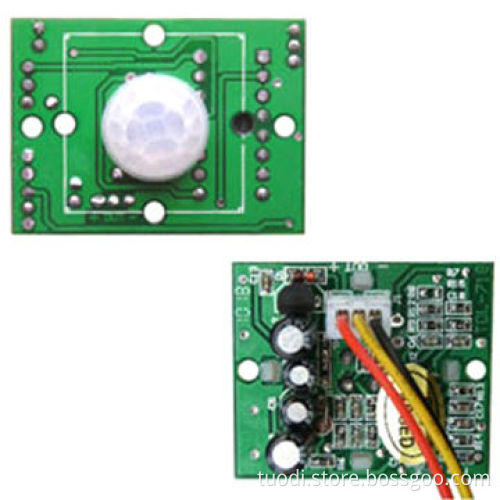

TDL-718B PIR motion sensor module with 5mA output current

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, PayPal

Product Description

Specifications:

Function description: infrared sensor modules, high-voltage output, wide voltage
Operating voltage: 5-24V DC
Operating temperature: -20 - 50°C
Static current: <50uA
Output current: 5mA
Loading capacity: audio driven, single chip port
Connecting styles: red-anode, black-cathode, yellow-output
Output mode: induction output
Light control range: adding photo activity according to customers' requirement
Delay shutdown time: 15 seconds (customized)
Induction mode: passive
Induction angle: 110° coning angle
Detecting distance: 4-5m
Dimensions: 33 x 28mm

Features:

Automatic induction: when people enter into the range of induction, it will turn-on, when people leave, it will turn-off with delay
It can be applied to corridors, passage ways, toilets, basements, warehouses, garages and more
Which have the function of automatic lighting and control
Luminous metering: we can add photo activity according to customers' requirement
Random delay time: 16 seconds (customized 2 seconds to 120 minutes)
Temperature compensation: Tuodi specialized temperature compensation chip, which used to reducing the effect of temperature on detecting distance
Triggering modes: repeatable triggering, non-triggering (optional)

Function description: infrared sensor modules, high-voltage output, wide voltage

Operating voltage: 5-24V DC

Operating temperature: -20 - 50°C

Static current: <50uA

Output current: 5mA

Loading capacity: audio driven, single chip port

Connecting styles: red-anode, black-cathode, yellow-output

Output mode: induction output

Light control range: adding photo activity according to customers' requirement

Delay shutdown time: 15 seconds (customized)

Induction mode: passive

Induction angle: 110° coning angle
