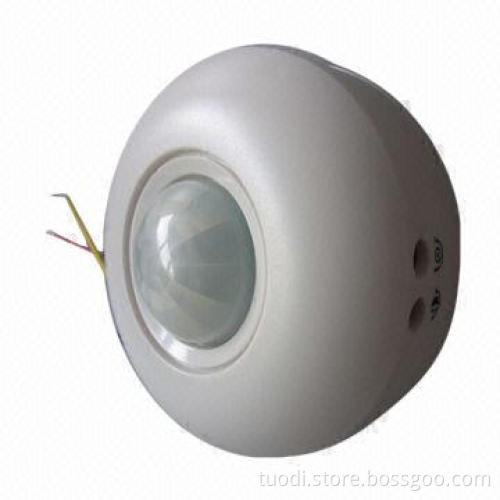

Relay control load motion detector light switch, 220V

Relay control load motion detector light switch, 220V

Get Latest Price

Payment Type:: T/T, Western Union, PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, PayPal

Product Description

Specifications:

Operating voltage: 110-250V AC (50-60Hz)
Operating temperature: -20 to +50°C
Static power: Loading power: 800W
Loading capacity all kinds of lights, appliances
Connecting style input: 220V AC
Output: 220V AC
Output mode: induction
Light control range: 5-500 Lux ±20% (adjustable)
Delay shutdown time: 16-350 seconds ±30% (adjustable)
Induction mode: passive
Induction angle: 360° coning angle
Detecting distance: 5-7m
Installing method: roof installation/ceiling installation
Dimensions/color: 89 x 36mm/porcelain

Range of applications and functions and features:

Automatic induction: when people enter into the range of induction, it will turn-on, when people leave, it will turn-off with delay
It can be applied to corridor, passageway, toilet, basement, warehouse, garage and more, which have the function of automatic lighting and control
Photosensitive control: it adopting photo active control, it doesn't turn on during daylight or in strong light environment
Automatic random delay: after it turns on, in the delay period, if there is presence of people, it keeps on working until people leave, than turn-on with delay
Status indicator: efficient LED indicator, which is easy for installation and fault analysis
Temperature compensation: Tuodi specialized temperature compensation chip, which used to reducing the effect of temperature on detecting distance

Operating voltage: 110-250V AC (50-60Hz)

Operating temperature: -20 to +50°C

Static power: Loading power: 800W

Loading capacity all kinds of lights, appliances

Connecting style input: 220V AC

Output: 220V AC

Output mode: induction

Light control range: 5-500 Lux ±20% (adjustable)

Delay shutdown time: 16-350 seconds ±30% (adjustable)

Induction mode: passive

Induction angle: 360° coning angle

Detecting distance: 5-7m

Installing method: roof installation/ceiling installation

Dimensions/color: 89 x 36mm/porcelain

Automatic induction: when people enter into the range of induction, it will turn-on, when people leave, it will turn-off with delay

It can be applied to corridor, passageway, toilet, basement, warehouse, garage and more, which have the function of automatic lighting and control

Photosensitive control: it adopting photo active control, it doesn't turn on during daylight or in strong light environment

Automatic random delay: after it turns on, in the delay period, if there is presence of people, it keeps on working until people leave, than turn-on with delay

Status indicator: efficient LED indicator, which is easy for installation and fault analysis

Temperature compensation: Tuodi specialized temperature compensation chip, which used to reducing the effect of temperature on detecting distance
