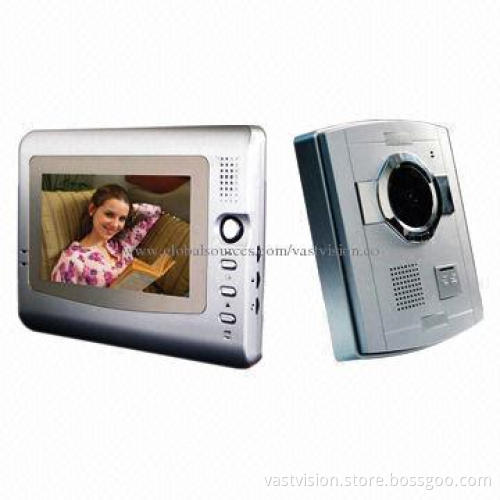

7-inch Video Doorphone Monitors with 4 Cameras Connected, 113 x 140 x 33mm Camera Size

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, PayPal or Western Union

Product Description

Function and features:

Plastic camera, good design, CMOS or CCD sensor
6 LED lights, night vision
Hand-free indoor monitor, 7-inch TFT, clear image
Intercommunication, monitoring the outdoor, unlock
Intercommunication is available between indoor and outdoor unit
Brightness, chrome and ring adjustable
3-chord melody rings for optional
Two cameras can connected with four monitors (different choice)
Four wires, DIY installation
Including in one kit: one indoor monitor, one outdoor camera, power adapter, user manual, cables
Packing detail: color box, 5 sets in one carton
Surface mounting for camera and monitor
Monitor dimensions (L x W x H): 225 × 168 x 29mm
Camera dimensions (L x W x H): 113 × 140 x 33mm
Wiring requirements:
30M: RVV4 X 0.5mm
50M: RVV4 X 0.75mm
100M: RVV4 X 1.0mm
Data of technology:
Night vision illumination distance; more than 2 meters
Gain control: automatic
Working temperature: -10-50°C
Illumination: 0.1 Lux
Camera angle: 92 C degrees wide-angle
Adapter input voltage: 100-240V AC, 50-60Hz
Adapter output voltage current: 14.5V AC, 1,200mA
Talk time delay: 90S
Monitor time delay: 30S
Dissipation: stand-by <0.5W
Working: <10W
Relative humidity: 10 - 90% RH
