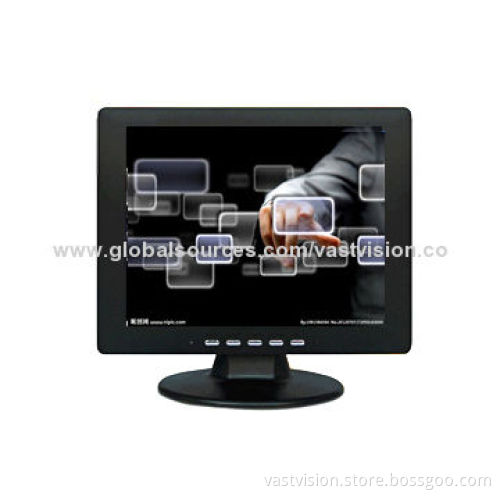

10-inch Capacitive Touch Panel with LCD Monitor

Get Latest Price

Payment Type:: T/T in Advance, PayPal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, PayPal, Western Union

Product Description

Specifications:

Display panel: 10-inch TFT LCD panel (4:3)
Best resolution: 800 x 600 pixels (1,024 x 768 or 640 x 480 pixels optional)
Contrast ratio: 400:1
Luminance: 250cd/m²
Viewing angle:
- Horizontal: 160° degrees
- Vertical: 140° degrees
Refresh rate: 60 to 75Hz
Signal interface: VGA/AV/TV, BNC (optional)
S-systems: PAL and NTSC
Panel backlight: CCFL double light
Image reversed: not supported
Power adapter:
- Input range: 110 to 220V
- Output: 12V
Weight: 1.7kg
Dimensions: 26.1 x 20.2 x 4.5cm
Accessories:
- User's manual, warranty card, stand, VGA cable, USB pen for touch, touch drive, USB cable, AC power adapter
Menu languages: English, Russian, French, Spanish, German, Italian and Chinese
Supports VGA/RCA/BNC input (optional)
Built-in speaker, with earphones jack to connect with earphones or sound box
Ultra-thin design

Main applications:

Information query terminals, drink and food ordering terminals, video/song selecting terminals, electronic storage cabinet operating terminals, financial transaction terminals, exhibition projects and more

Packing:

Unit weight: 1.9kg
Unit dimensions (LxBxH): 31 x 11 x 3cm
Carton weight: 20kg
Carton box dimensions (LxBxH): 60 x 32.5 x 62.5cm

Display panel: 10-inch TFT LCD panel (4:3)

Best resolution: 800 x 600 pixels (1,024 x 768 or 640 x 480 pixels optional)

Contrast ratio: 400:1

Luminance: 250cd/m²

Viewing angle:

Horizontal: 160° degrees
Vertical: 140° degrees

Refresh rate: 60 to 75Hz

Signal interface: VGA/AV/TV, BNC (optional)

S-systems: PAL and NTSC

Panel backlight: CCFL double light

Image reversed: not supported

Power adapter:

Input range: 110 to 220V
Output: 12V

Weight: 1.7kg

Dimensions: 26.1 x 20.2 x 4.5cm

Accessories:

User's manual, warranty card, stand, VGA cable, USB pen for touch, touch drive, USB cable, AC power adapter

Menu languages: English, Russian, French, Spanish, German, Italian and Chinese

Supports VGA/RCA/BNC input (optional)

Built-in speaker, with earphones jack to connect with earphones or sound box

Ultra-thin design

Horizontal: 160° degrees

Vertical: 140° degrees

Input range: 110 to 220V

Output: 12V

User's manual, warranty card, stand, VGA cable, USB pen for touch, touch drive, USB cable, AC power adapter

Information query terminals, drink and food ordering terminals, video/song selecting terminals, electronic storage cabinet operating terminals, financial transaction terminals, exhibition projects and more

Unit weight: 1.9kg

Unit dimensions (LxBxH): 31 x 11 x 3cm

Carton weight: 20kg

Carton box dimensions (LxBxH): 60 x 32.5 x 62.5cm
