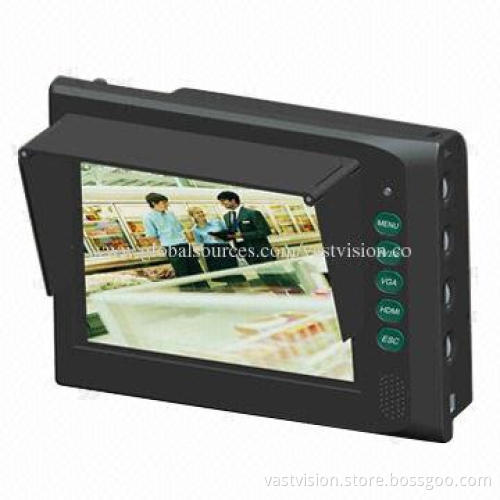

5.6-inch HD-SDI CCTV Tester with HD-SDI Input, 640 x 480 Pixels Resolution
  • 5.6-inch HD-SDI CCTV Tester with HD-SDI Input, 640 x 480 Pixels Resolution
5.6-inch HD-SDI CCTV Tester with HD-SDI Input, 640 x 480 Pixels Resolution

5.6-inch HD-SDI CCTV Tester with HD-SDI Input, 640 x 480 Pixels Resolution

Get Latest Price
Payment Type:
T/T in Advance, PayPal or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, PayPal or Western Union
Product Description
Product Description
  • Features:
    • Resolution: 640 x 480 pixels
    • Lightweight and compact size
    • NTSC/PAL auto-recognition
    • 1 x BNC, 1 x HDMI®, 1 x HD-SDI, 1 x VGA input and 1 x audio input
    • Test pattern generator and 12V DC power-out
    • Multi-lingual, supports OSD
    • Carrying strap and travel case (optional)
    • Rechargeable battery and AC adapter
    • Anti-scratch and anti-reflective visor
    • Last memory for settings when power-off
    • Provided with tempered glass against damage to screen
    • Power-saving while no signal input
    • For CCTV installation, onsite demonstration and testing
  • Specifications:
    • Display area: color 5.6-inch LCD (LED backlight)
    • Resolution (H x V): 640 x 480mm (4:3)
    • Display models: HDMI®, VGA, video 1, HD-SDI, test pattern
    • Backlight type: LED
    • Brightness: 300cd/m²
    • Contrast ratio: 500:1
    • Viewing angle:
      • L/R: 70/70°
      • Up/down: 50/70°
    • Stands/bracket supported: 1/4-inch standard screw mount on bottom
    • Power requirement:
      • Input range: 100-240V/1.5A, 50/60Hz
    • Power consumption: 14W
    • Rechargeable battery: 2,500mAh
    • Actual visible screen size: 5.6 inches ((H/V) 112.896/84.672mm)
    • Signal input:
      • 1 x HDMI® input
      • 1 x VGA input
      • 1 x BNC input
      • 1 x audio input
      • 1 x HD-SDI input
    • Output:
      • 1 x BNC output
      • 1 x 12V DC output
  • Optional items: carrying case, TYL-560CC
  • Resolution: 640 x 480 pixels
  • Lightweight and compact size
  • NTSC/PAL auto-recognition
  • 1 x BNC, 1 x HDMI®, 1 x HD-SDI, 1 x VGA input and 1 x audio input
  • Test pattern generator and 12V DC power-out
  • Multi-lingual, supports OSD
  • Carrying strap and travel case (optional)
  • Rechargeable battery and AC adapter
  • Anti-scratch and anti-reflective visor
  • Last memory for settings when power-off
  • Provided with tempered glass against damage to screen
  • Power-saving while no signal input
  • For CCTV installation, onsite demonstration and testing
  • Display area: color 5.6-inch LCD (LED backlight)
  • Resolution (H x V): 640 x 480mm (4:3)
  • Display models: HDMI®, VGA, video 1, HD-SDI, test pattern
  • Backlight type: LED
  • Brightness: 300cd/m²
  • Contrast ratio: 500:1
  • Viewing angle:
    • L/R: 70/70°
    • Up/down: 50/70°
  • Stands/bracket supported: 1/4-inch standard screw mount on bottom
  • Power requirement:
    • Input range: 100-240V/1.5A, 50/60Hz
  • Power consumption: 14W
  • Rechargeable battery: 2,500mAh
  • Actual visible screen size: 5.6 inches ((H/V) 112.896/84.672mm)
  • Signal input:
    • 1 x HDMI® input
    • 1 x VGA input
    • 1 x BNC input
    • 1 x audio input
    • 1 x HD-SDI input
  • Output:
    • 1 x BNC output
    • 1 x 12V DC output
  • L/R: 70/70°
  • Up/down: 50/70°
  • Input range: 100-240V/1.5A, 50/60Hz
  • 1 x HDMI® input
  • 1 x VGA input
  • 1 x BNC input
  • 1 x audio input
  • 1 x HD-SDI input
  • 1 x BNC output
  • 1 x 12V DC output
