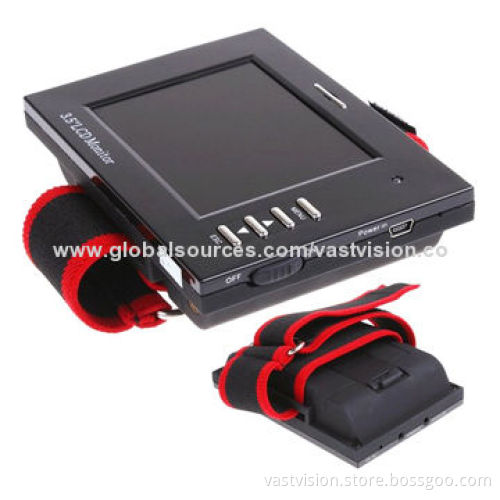

3.5-inch Portable CCTV Tester with 320 x 240 Pixels Resolution
  • 3.5-inch Portable CCTV Tester with 320 x 240 Pixels Resolution
3.5-inch Portable CCTV Tester with 320 x 240 Pixels Resolution

3.5-inch Portable CCTV Tester with 320 x 240 Pixels Resolution

Get Latest Price
Payment Type:
T/T in Advance, PayPal or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, PayPal or Western Union
Product Description
Product Description
  • Specifications:
    • Display area: 3.5-inch TFT LCD active matrix
    • Material: ABS plastic
    • Resolution: 320 x 240 pixels
    • Input signal level: 1.0Vp-p, 75Ω
    • Backlight type: LED
    • Brightness: 300cd/m²
    • Contrast ratio: 150:1
    • Viewing angle: (up/down/left/right): 40/60/60/60 degrees
    • System of signal: PAL/NTSC
    • Power requirement: 12V DC/50-60Hz
    • Power output: 12V DC
    • Power consumption: 1.5W
    • Actual visible screen size (H x V): 70.08 x 52.56mm
    • Operating temperature: -10 to 60°C
    • Storage temperature: -20 to 70°C
    • Rear connection: 3.5mm A/V input/output with cables
    • Power supply: 12V DC output jack
    • USB 5 pins DC in jack
    • Dimensions (L x W x H): 119 x 84 x 28mm
    • Packing size (L x W x H): 260 x 145 x 63mm
    • Net weight: 120kg
    • Gross weight: 0.86kg
  • Description:
    • LED backlight provides longer lifespan, uses less power and provides better color saturation
    • Battery pack for field monitor use included
    • Ideal for trouble shooting system setup/fault location
    • Manual color adjustment
    • Low-power consumption
    • Battery pack provides 7 hours continuous operating when power out closed
    • Snap-on battery pack holds 4 pieces of AA NiMH rechargeable batteries (batteries included)
    • Manual controls for brightness, color, contrast and audio volume
  • Features:
    • Monitors for testing video performance, angle of view and focus of security cameras during installation
    • With portable carrying wrist strap, rechargeable battery
    • Can be taken on installer's arm for easier video check
  • Display area: 3.5-inch TFT LCD active matrix
  • Material: ABS plastic
  • Resolution: 320 x 240 pixels
  • Input signal level: 1.0Vp-p, 75Ω
  • Backlight type: LED
  • Brightness: 300cd/m²
  • Contrast ratio: 150:1
  • Viewing angle: (up/down/left/right): 40/60/60/60 degrees
  • System of signal: PAL/NTSC
  • Power requirement: 12V DC/50-60Hz
  • Power output: 12V DC
  • Power consumption: 1.5W
  • Actual visible screen size (H x V): 70.08 x 52.56mm
  • Operating temperature: -10 to 60°C
  • Storage temperature: -20 to 70°C
  • Rear connection: 3.5mm A/V input/output with cables
  • Power supply: 12V DC output jack
  • USB 5 pins DC in jack
  • Dimensions (L x W x H): 119 x 84 x 28mm
  • Packing size (L x W x H): 260 x 145 x 63mm
  • Net weight: 120kg
  • Gross weight: 0.86kg
  • LED backlight provides longer lifespan, uses less power and provides better color saturation
  • Battery pack for field monitor use included
  • Ideal for trouble shooting system setup/fault location
  • Manual color adjustment
  • Low-power consumption
  • Battery pack provides 7 hours continuous operating when power out closed
  • Snap-on battery pack holds 4 pieces of AA NiMH rechargeable batteries (batteries included)
  • Manual controls for brightness, color, contrast and audio volume
  • Monitors for testing video performance, angle of view and focus of security cameras during installation
  • With portable carrying wrist strap, rechargeable battery
  • Can be taken on installer's arm for easier video check
