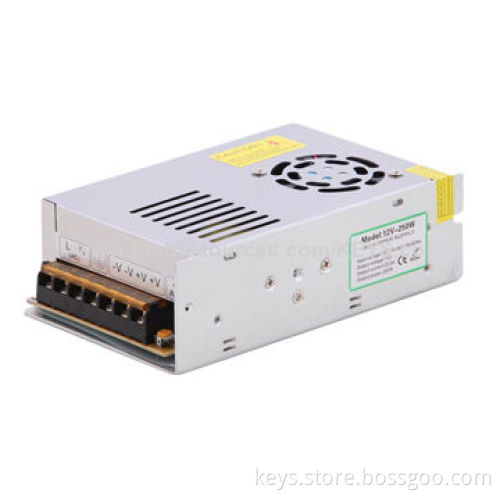

DC12V 250-400W switching power supply with fan cooling and USB interface, input voltage AC90-250V

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C or Western Union

Product Description

Features:

Specification:

Protection:

Over-current: 105-150% rated output power. Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over-voltage: Protection type: shut down o/p voltage, re-power on to recover
Short circuit: Auto recover
Protection grade: IP20

Environment:

Working temp.: - 20-60° C/20%-90% RH (no frost)
Storage temp.: -40-85°C/20%-90% RH (no frost)
Temp. coefficient: 0.03%°C (0~50°C)
Vibration frequency: 10~500Hz, 2G 10min/1cycle, period for 60 min. each long X, Y, Z axes

Uiversal AC input/full range

Protection: Short circuit/overload/over voltage/over temperature

High efficiency and low operation temperature

Soft-start current can reduce the AC input impact effectively

100% full load burn-in test

Ideal for indoor or outdoor installations

Suitable for LED lighting and moving sign applications

2 years warranty

Ripple and noise note: 150mVp-p

Setup rise hold up time: 200, 50, 20ms

Voltage range: 90-130V, 170-264V

Frequency range: 47~63Hz
