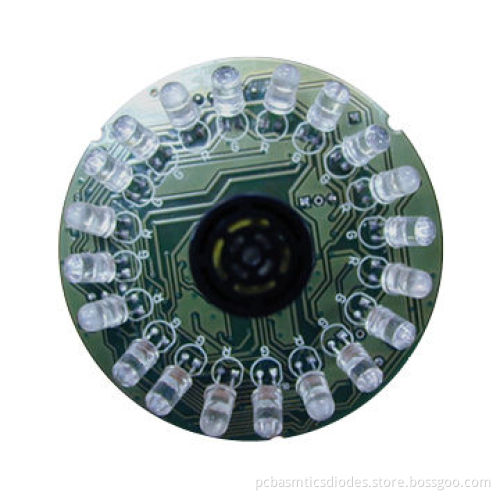

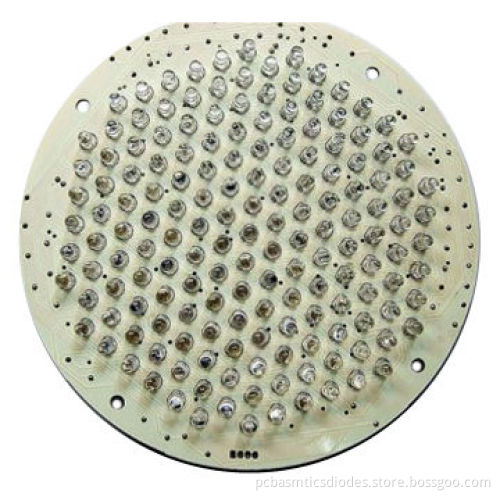

PCB Assembly for LED Lighting

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT in advance, L/C at sight, PayPal

Product Description

PCB board assembly:

Layer: 1-22 layers

Materials: FR-1, FR-2, FR-4, CEM-1, CEM-3, high TG, FR4 halogen-free

Board thickness: 0.2-3.5mm

Maximum panel size: 630*520mm

Minimum drilled hole size: 0.5mm

Minimum line width: 0.075mm (3mil)

Minimum line spacing: 0.075mm (3mil)

Surface finish/treatments: HASL/HASL lead-free, chemical tin, chemical gold, immersion gold, immersion silver/gold, OSP, gold plating

Copper thickness: 0.5oz at minimum, 5.0oz at maximum

Solder mask colors: green/black/white/red/blue/yellow

Electronic component: high-precision 0201, 0402, 0603, fine pitch QFP, BGA

Inner packaging: vacuum packaging, plastic bag

Outer packaging: standard carton packaging

Hole tolerance:

Certificates: UL, ISO 9001, ISO 14001, ISO/TS16949, RoHS

Profiling punching: routing, V-cut, beveling

Staff: experienced technical staffs

Products experience range: industrial, automotive, medical, computing, storage, instrumentation, traffic, industrial power, battery, fire alarm, CC

Approval: ISO 9001:2008

Reply via e-mail in 4 hours

Quotation in 3 days

IPC-A-160 standard

PTH: ±0.076

NTPH: ±0.05
