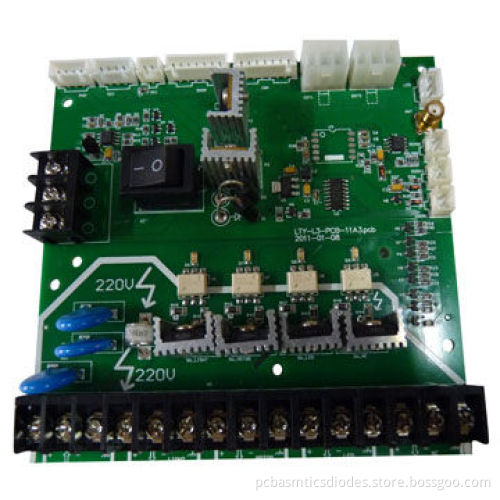

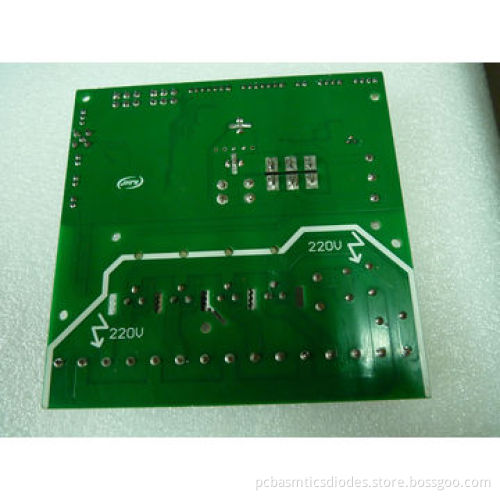

PCB Assembly for Video Controls for Bus/Cars

PCB Assembly for Video Controls for Bus/Cars

Get Latest Price

Payment Type:: Delivery Point (DP)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Delivery Point (DP)

Product Description

Certification: ISO 9001:2008

Reply E-mail in 4 hours

Quotation in 3 days

IPC-A-160 standard

Layers: 1-22 layers

Materials: FR-1, FR-2, FR-4, CEM-1, CEM-3, high TG, FR4 halogen-free

Board thicknesses: 0.2-3.5mm

Maximum panel size: 630*520mm

Minimum drilled hole size: 0.5mm

Minimum line width: 0.075mm (3mil)

Minimum line spacing: 0.075mm (3mil)

Surface finish/treatment HASL/HASL lead free, chemical tin, chemical gold, immersion gold, immersion silver/gold, OSP and gold plated

Copper thicknesses: 0.5oz minimum and 5.0oz maximum

Solder mask colors: green/black/white/red/blue/yellow

Electronic component high precision: 0201, 0402, 0603, fine pitch QFP, BGA

Packing:

Inner: vacuum and plastic bag
Outer: standard carton

Hole tolerance:

PTH: ±0.076
NTPH: ±0.05

Certifications: UL, ISO 9001, ISO 14001 and ISO/TS16949

RoHS Directive-compliant

Profiling punching routing, V-cut and beveling

Staff: experienced technical staff

Experience range: industrial, automotive, medical, computing, storage, instrumentation, traffic, industrial power, battery, fire alarm, CCTV, wireless communication, telecommunication, networking, printer and house controller

Inner: vacuum and plastic bag

Outer: standard carton

PTH: ±0.076

NTPH: ±0.05
