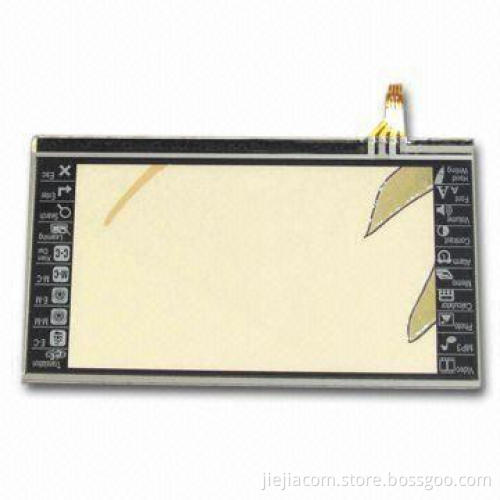

Imitation Screen Resistive Touch Panel

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Product features:

Superior accuracy/drift-free operation: 98.5% linearity
Supports multiple operating systems: Microsoft's Windows,Linux, Mac
Light transmission: 80 to 90%
Finger, gloved hand and stylus input

Common applications:

PDAs, web phones, tablet PCs, web pads, mobile warehousing,e-Book, GPS and more

Specifications:

Touch screen: analog resistive
Standard size: 1.8 to 17 inches (custom sizes available)
Optical:
Film type: anti-glare, anti-reflective
Light transmission: 83 ±5%, options to 90%

Electrical:

Operating voltage: 5V DC (5.5V, 3.3V available aftercustomization)
Insulation impedance: 25M Ohms at 25V DC
Linearity: 98.5% (bias less than 1.5%)
Chattering time: 10 milliseconds or less

Mechanical:

Input method: finger, pen or gloved hand
Touch activation force: 80 grams typical
Scrape hardness: 3H per ASTM D3365 3H per JIS K5400
Supported operating system:
- MS-DOS, Microsoft's Windows 95/98/2000/CE/Me/2000NT, OS/2, MAC,Linux and more
Sensor thickness (sensor plus glass):0.95/1.35/2.05/0.15mm

Reliability:

Operating environment: -10 to 60 degrees Celsius
Storage temperature: -20 to 70 degrees Celsius
Humidity: 60C, 90% RH 240HR
Touch durability: 5 million touches in a single location
Surface scratch: 150K/300K (250/500gf, 50mm/second)
Surface pitting: 1M (250gf 2 times/second)
NEMA 4 capable

Superior accuracy/drift-free operation: 98.5% linearity

Supports multiple operating systems: Microsoft's Windows,Linux, Mac

Light transmission: 80 to 90%

Finger, gloved hand and stylus input

PDAs, web phones, tablet PCs, web pads, mobile warehousing,e-Book, GPS and more

Touch screen: analog resistive

Standard size: 1.8 to 17 inches (custom sizes available)

Optical:

Film type: anti-glare, anti-reflective

Light transmission: 83 ±5%, options to 90%

Operating voltage: 5V DC (5.5V, 3.3V available aftercustomization)

Insulation impedance: 25M Ohms at 25V DC

Linearity: 98.5% (bias less than 1.5%)

Chattering time: 10 milliseconds or less

Input method: finger, pen or gloved hand

Touch activation force: 80 grams typical

Scrape hardness: 3H per ASTM D3365 3H per JIS K5400

Supported operating system:

MS-DOS, Microsoft's Windows 95/98/2000/CE/Me/2000NT, OS/2, MAC,Linux and more

Sensor thickness (sensor plus glass):0.95/1.35/2.05/0.15mm

MS-DOS, Microsoft's Windows 95/98/2000/CE/Me/2000NT, OS/2, MAC,Linux and more

Operating environment: -10 to 60 degrees Celsius

Storage temperature: -20 to 70 degrees Celsius

Humidity: 60C, 90% RH 240HR

Touch durability: 5 million touches in a single location

Surface scratch: 150K/300K (250/500gf, 50mm/second)

Surface pitting: 1M (250gf 2 times/second)

NEMA 4 capable

All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.
