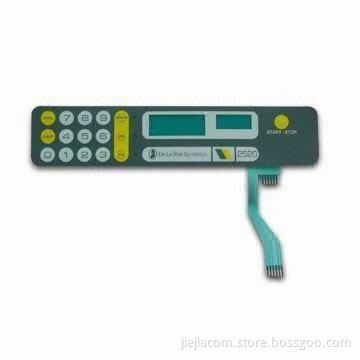

Dome Made Membrane Switch with Embedded ITO Touchscreen and Insulation Resistance

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Materials: PET and PC

With FPC circuit on the back

High quality metal dome

Tail termination: either male or female connectors

Waterproof type

Embedded ITO touchscreen

Specifications:

Maximum circuit rating: 35V DC, 100mA, 1W

Contact resistance: 10 to 500© (varied from the tracelength and material)

Insulation resistance: 100M© at 100V

Dielectric withstand: 250Vrms (50 to 60Hz/minute)

Contact bounce: 5ms or less

Tactile type actuation force: 150 to 400g (6 to 14oz)

Tactile type switch stroke: 0.6 to 1.5mm

Tactile type life expectancy: 1,000,000 closures or more

Surface hardness: 3H or more

Operating temperatures: -40 to +80ºC

Storage temperatures: -40 to +85ºC

Operating humidity: 90 to 95%RH (at 40ºC ) for 240hours

OEM orders are welcome
