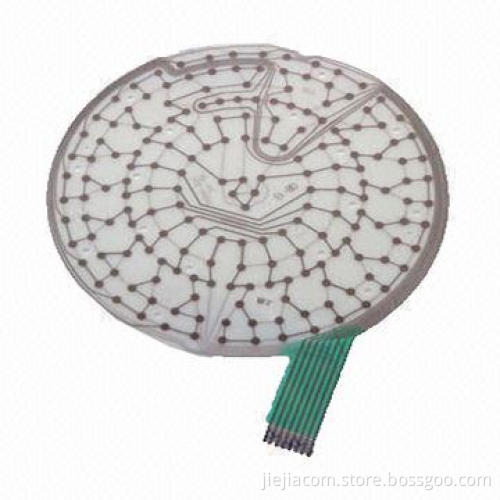

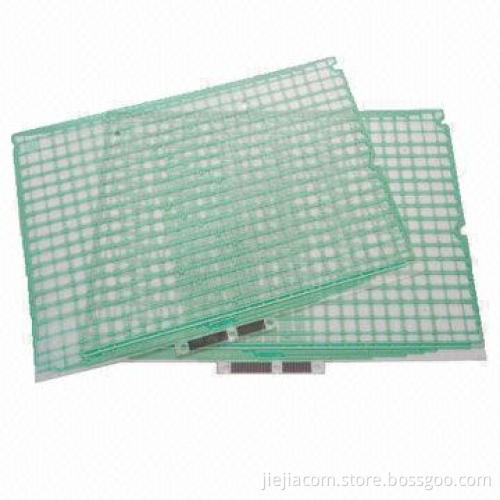

PET Membrane Keyboards Circuit, Flexible

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Cash, Bank Transfer or T/T

Product Description

Technical parameters:

Made of insulating material layers and conductive layers

Good appearance, small volume, long lifespan and bendresistance

Strong resistances against the water, fire, oil andscratch

Technical data:

Electrical performance:

Operating voltage: d50VD

Operating current: d100mA

Contact resistance: 0.5 to 10©

Insulation resistance: e500m© (100V DC)

Base material withstand: 2kDVC

Contact bounce: d6ms

Loop resistance: 500©

Mechanical properties:

Life expectancy: >1 million times

Switch stroke: 0.1 to 0.4mm (flat type)/0.4 to 1.0mm (tactiletype)

Actuation force: 15 to 750g

Flex tail pitch (standard): 2.54/2.50/1.27/1.25mm

Environment specifications:

Operating temperatures: -20 to +70°C

Storage temperature: -40 to +85°C

Humidity: 40 C, 90 to 95%, 240 hours

Printing indicator:

Size deviation: ±0.15mm

Side boundary: d0.1mm
