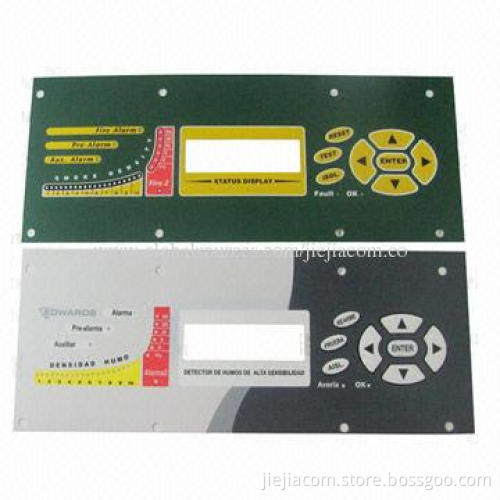

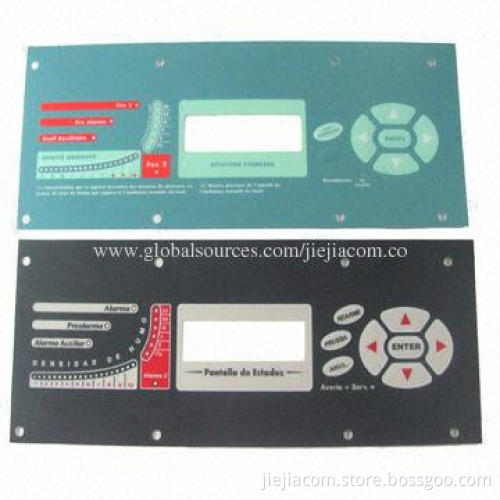

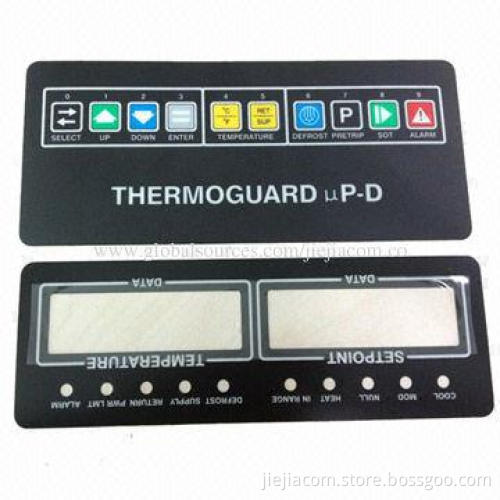

Polycarbonate Adhesive Label, PCB Front Panel Stickers, -20-70°C Operating Temperature

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Cash, Bank Transfer or T/T

Product Description

Parameters:

Material: matte PET auto type F150-0.15mm
Spacer-layer: double-sided adhesive 0.25mm
Built-in embedded LED
Circuit layer: PET 0.125mm
Back of the adhesive: 3M467/3M468/3M9448
Insulating material and conductive layers
Good appearance, small volume, long lifespan and bend resistance make the membrane switch popularly accepted
With strong resistances against the water, fire, oil and scratch
Operating voltage: ≤50V DC
Operating current: ≤100mA
Contact resistance: 0.5-10Ω
Insulation resistance: ≥100MΩ (100V DC)
Base material withstand: 2kV DC
Contact bounce: ≤6 minutes
Loop resistance: 50, 150, 350Ω or can be customized
Lifespan expectancy: >1 million times
Switch stroke range: 0.1-0.4mm (flat type), 0.4-1.0mm (tactile type)
Actuation force: 15-750g
Flex tail pitch (standard): 2.54/2.50/1.27/1.25mm
Operating temperature: -20-70°C
Storage temperature: -40-85°C
Humidity range: 40°C, 90-95% RH, 240 hours
Size deviation: ±0.15mm
Side boundary: ≤0.1mm
