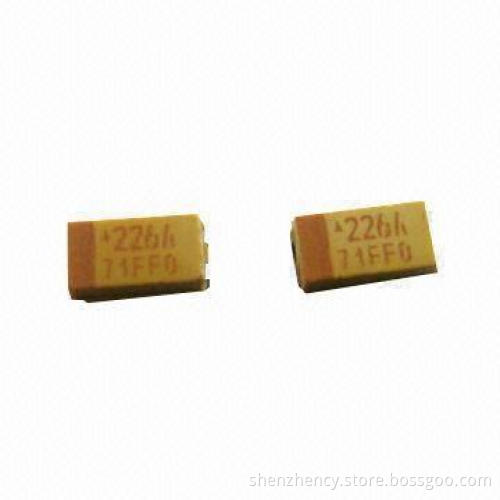

Tantalum Capacitors with 0.1 to 1000μF Capacitance Range and ±10% Tolerance

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Capacitance tolerance: ±20%, ±10%

Capacitance range: 0.1 to 1000μF

Voltage rating: 4 to 50V

DC leakage current (at 20°C):

Io: ≤0.01CRUR or 0.5μA (whichever is greater)

Dissipation factor (20°C): see table 1

Temperature performance: see table 1

Climatic category: 55/125/21 ceramic

Reliability: 2%/1000 hours at 85°C with 0.1Ω/V seriesimpedance 60% confidence level

Operating temperature: -55 to +125°C (above 85°C, usedreaded voltage)

Lifespan: 2000 hours

Table 1:

Drawing and dimensions:

Cap: -55°C, +85°C, +125°C, -55°C, +20°C,+85°C, +125°C, +85°C and +125°CμF

Capacitance change: ≤1.0, -10, +10, +12, 6, 4, 6, 6, 10 I0and 12.5 I0%

Maximum DF: 1.5 to 68, -10, +10, +12, 10, 6, 10, 10, 10 I0 and12.5 I0%

Maximum DCL: ≥100, -10, +10, +12, 12, 8, 12, 12, 10 I0 and12.5 I0μA

S: 2012, 2.0 ±0.2, 1.2 ±0.2, 1.2 ±0.2, 0.5±0.3 and 1.2 ±0.1

A: 3216, 3.2 ±0.2, 1.6 ±0.2, 1.6 ±0.2, 0.8±0.3 and 1.2 ±0.1

B: 3528, 3.5 ±0.2, 2.8 ±0.2, 1.9 ±0.2, 0.8±0.3 and 2.2 ±0.1

C: 6032, 6.0 ±0.3, 3.2 ±0.3, 2.5 ±0.3, 1.3±0.3 and 2.2 ±0.1

D: 7343, 7.3 ±0.3, 4.3 ±0.3, 2.8 ±0.3, 1.3±0.3 and 2.4 ±0.1

E: 7343, 7.3 ±0.3, 4.3 ±0.3, 4.0 ±0.3, 1.3±0.3 and 2.4 ±0.3

V: 7361
