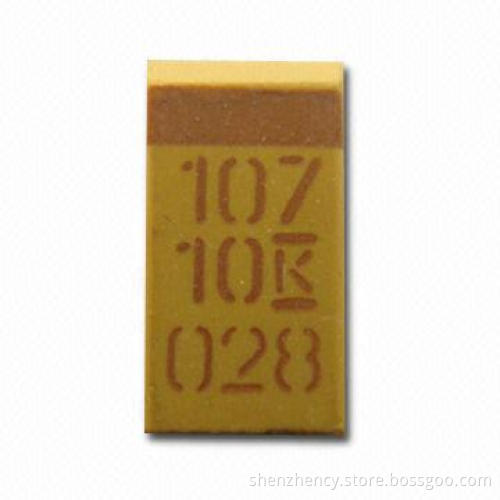

Solid Tantalum Capacitor with 2,000 Hours Lifespan Test and 4 to 50V Voltage Rating

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Features:

Designed and manufactured with demanding requirements ofsurface mount technology
S, A, B, C, D, E and V seven case codes
Lower ESR compared with dipped tantalum capacitors
Compatible with automatic pick and place equipment
Suitable for military equipment, computers, ceil telephones andother electronic products
Meets requirements of EIA 535BAAC, QC300801 and Q/YHC.45-01standards

Specifications:

Voltage rating: 4 to 50V
Capacitance tolerance: 10 to ±20%
Capacitance range: 0.1 to 1,000μF
Operating temperature: -55 to +125°C (above 85°C, usedreaded voltage)
DC leakage current (20°C): I0 ≤0.01CRUR or 0.5μA(whichever is greater)
Dissipation factor (20°C): see table 1
Temperature performance: see table 1
Climatic category: 55/125/21
Reliability: 2% per 1,000 hours at 85°C with 0.1Ω/Vseries impedance 60% confidence level
Lifespan test: 2,000 hours

Designed and manufactured with demanding requirements ofsurface mount technology

S, A, B, C, D, E and V seven case codes

Lower ESR compared with dipped tantalum capacitors

Compatible with automatic pick and place equipment

Suitable for military equipment, computers, ceil telephones andother electronic products

Meets requirements of EIA 535BAAC, QC300801 and Q/YHC.45-01standards

Voltage rating: 4 to 50V

Capacitance tolerance: 10 to ±20%

Capacitance range: 0.1 to 1,000μF

Operating temperature: -55 to +125°C (above 85°C, usedreaded voltage)

DC leakage current (20°C): I0 ≤0.01CRUR or 0.5μA(whichever is greater)

Dissipation factor (20°C): see table 1
