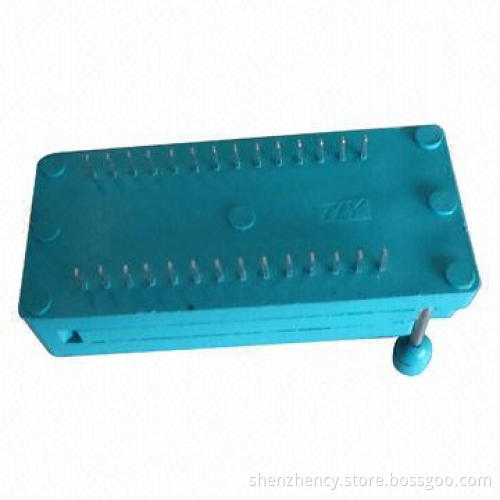

28-pin Universal ZIF IC Test Socket

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Material:

Housing: 30% glass filled PBT UL 94V-0

Contacts: phosphor bronze

Plating: gold-plated, silver-plated

Electrical characteristics:

Current rating: 1A

Insulator resistance: 5000M© minimum at DC 500V

Contact resistance: 20M© maximum at DC 100mA

Operating temperature: -55 to 105°C

Universal 28 pin ZIF ZIP DIP IC test board socket

3M Textool Shrink ZIP DIP Socket is for DIPs with .07 inch leadspacing and accommodates pin counts from 28 through 90 leads

3M Textool universal ZIP DIP socket is for DIPs with .100 inchlead spacing and has an extra wide contact zone which allowsinsertion of DIPs with distance between rows from .300 inch through.600 inch

3M Textool ZIP DIP Receptacles for all ZIP DIP's Sockets isdesigned with mounting flanges which hold receptacle to board andhas pre-tapped holes in receptacle body mate with screw-hole insocket

3M Textool ZIP DIP socket is for DIPs with .100 inch leadspacing and accommodates pin counts from 14 through 64 leads
