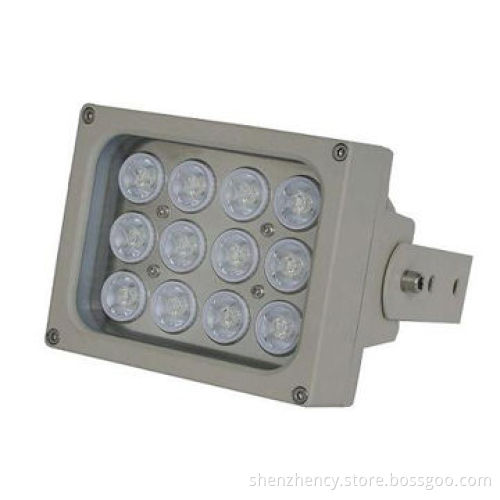

IR Illuminators, Used for Cameras at Night

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Detailed information :

Accurate constant driver circuit develops excellent performance of LED
Dot matrix super power LED brings high efficacy, low light decay and long service life
More energy-saving by power factor correction, 0.9-0.98PF
IP66 waterproof
-40 to +55°C working temperature

Technical specification:

LED type: 12pcs 2W dot-matrix IR LED
Wavelength: 740nm/850nm/940nm
Beam angle: 15-120°
Beam distance: 240m-70m
Bracket: wall mount bracket
Working voltage: AC 85-265V/DC 12-24V/AC 24V
Power consumption: 28W
Day/night switch: auto
Color: beige
Panel: tempered glass
Housing: aluminum die casting
NW/GW: 1.4kg/1.7kg
Dimensions: 135*110*91mm
Packing dimensions: 180*190*135mm
Warranty: 2 years
Models: CYS12D-15-IR, CYS12D-30-IR, CYS12D-45-IR, CYS12D-60-IR, CYS12D-90-IR, CYS12D-120-IR
Beam angles: 15, 30, 45, 60, 90, 120°
Viewing distance (850nm): 240m, 210m, 180m, 150, 110, 70
Viewing distance: tested by Watec/WAT-902H 1/3" CCD camera
To achieve the distance needed, please pay attention to your camera specification and lens before purchase
It is normal phenomenon that distance may vary due to different cameras and lens
